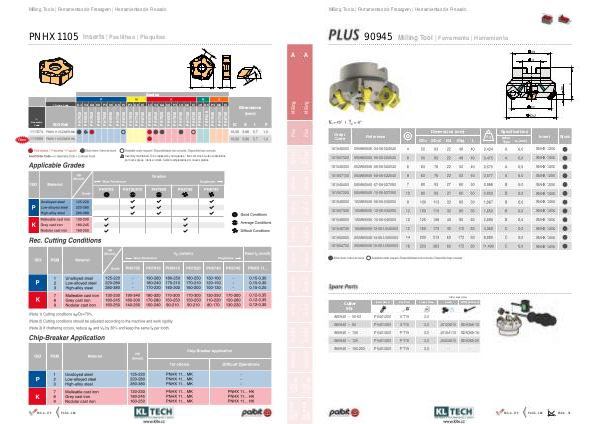

PALBIT - katalog | KL-TECH s.r.o. | www.klte.cz Palbit_katalog | Page 73

Milling Tools | Ferramentas de Fresagem | Herramientas de Fresado
90945
Milling Tool | Ferramenta | Herramienta
Specifications
Dimensions (mm)
Order
Code Reference 181048200 050A90945-04-06-022040 SNHX 1206
181067000 050A90945-06-06-022040 SNHX 1206
181048300 063A90945-06-06-022040 SNHX 1206
181067100 063A90945-08-06-022040 SNHX 1206
181048400 080A90945-07-06-027050 SNHX 1206
181067200 080A90945-10-06-027050 SNHX 1206
181048500 100A90945-08-06-032050 SNHX 1206
181067300 100A90945-12-06-032050 SNHX 1206
181048600 125A90945-10-06-040063 SNHX 1206
181048700 160A90945-12-06-U040063 SNHX 1206
181052800 200A90945-14-06-U060063 SNHX 1206
181064700 250A90945-16-06-U060063 SNHX 1206
ØDc
ØDc2
Ød
Ødg
L
Kg
Arbor
Type
Insert
Stock
a p (mm)
A
Key (Torx) Torque Value Screw DIN 6368 Wrench
A90945 – 50-63 P0401200 XT15 3,0 - -
A90945 – 80 P0401200 XT15 3,0 J0123510 SD6368-12
A90945 – 100 P0401200 PT15 3,0 J0164110 SD6368-16
A90945 – 125 P0401200 PT15 3,0 J0204610 SD6368-20
A90945 – 160-250 P0401200 PT15 3,0 - -
Cutter
ØDc
Order separately
Insert Screw
A - 72
PAG A - 179
PAG A - 204
PAG A - 74
