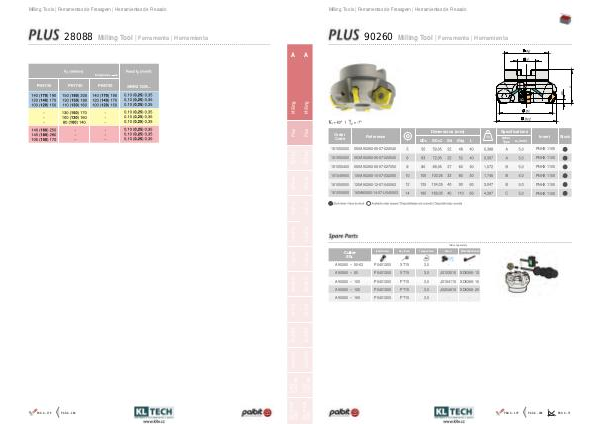

PALBIT - katalog | KL-TECH s.r.o. | www.klte.cz Palbit_katalog | Page 71

Milling Tools | Ferramentas de Fresagem | Herramientas de Fresado
90260
Milling Tool | Ferramenta | Herramienta
Specifications
Dimensions (mm)
Order
Code Reference 181050200 050A90260-05-07-022040 PNHX 1105
181050300 063A90260-06-07-022040 PNHX 1105
181050400 080A90260-08-07-027050 PNHX 1105
181045900 100A90260-10-07-032050 PNHX 1105
181050500 125A90260-12-07-040063 PNHX 1105
181050600 160A90260-14-07-U040063 PNHX 1105
ØDc
ØDc2
Ød
Ødg
L
Kg
Arbor
Type
Insert
Stock
a p (mm)
A
Insert Screw Key (Torx) Torque Value Screw DIN 6368 Wrench
A90260 – 50-63 P0401200 XT15 3,0 - -
A90260 – 80 P0401200 XT15 3,0 J0123510 SD6368-12
A90260 – 100 P0401200 PT15 3,0 J0164110 SD6368-16
A90260 – 125 P0401200 PT15 3,0 J0204610 SD6368-20
A90260 – 160 P0401200 PT15 3,0
-
-
Order separately
Cutter
ØDc
A - 70
PAG A - 179
PAG A - 204
PAG A - 71
