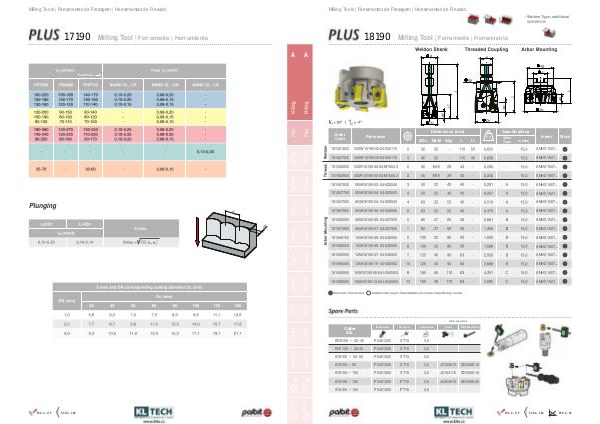

PALBIT - katalog | KL-TECH s.r.o. | www.klte.cz Palbit_katalog | Page 63

Milling Tools | Ferramentas de Fresagem | Herramientas de Fresado
18190
Milling Tool | Ferramenta | Herramienta
Specifications
Dimensions (mm)
Order
Code Reference 181051600 032W18190-02-04-032110 ANHX 1607...
181067500 040W18190-03-04-032115 ANHX 1607...
181082800 032R18190-02-04-M16043 ANHX 1607...
181082900 040R18190-03-04-M16043 ANHX 1607...
181067600 050A18190-03-04-022040 ANHX 1607...
181067700 050A18190-04-04-022040 ANHX 1607...
181067800 063A18190-04-04-022040 ANHX 1607...
181067900 063A18190-06-04-022040 ANHX 1607...
181068000 080A18190-05-04-027050 ANHX 1607...
181051800 080A18190-07-04-027050 ANHX 1607...
181068100 100A18190-05-04-032050 ANHX 1607...
181068200 100A18190-08-04-032050 ANHX 1607...
181068300 125A18190-07-04-040063 ANHX 1607...
181068400 125A18190-10-04-040063 ANHX 1607...
181068500 160A18190-08-04-U040063 ANHX 1607...
181068600 160A18190-12-04-U040063 ANHX 1607...
ØDc
Ød/M
Ødg
L
L1
Kg
Arbor
Type
Insert
Stock
a p (mm)
A
Order separately
Cutter
ØDc Insert Screw Key (Torx) Torque Value Screw DIN 6368 Wrench
W18190 – 32-40 P0401200 XT15 3,0 - -
R18190 – 32-40 P0401200 XT15 3,0 - -
A18190 – 50-63 P0401200 XT15 3,0 - -
A18190 – 80 P0401200 XT15 3,0 J0123510 SD6368-12
A18190 – 100 P0401200 XT15 3,0 J0164110 SD6368-16
A18190 – 125 P0401200 PT15 3,0 J0204610 SD6368-20
A18190 – 160 P0401200 PT15 3,0 - -
A - 62
PAG A - 179
PAG A - 204
PAG A - 64
