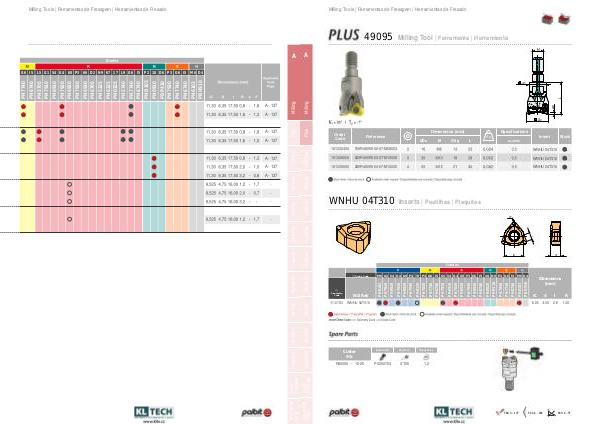

PALBIT - katalog | KL-TECH s.r.o. | www.klte.cz Palbit_katalog | Page 55

Milling Tools | Ferramentas de Fresagem | Herramientas de Fresado
49095
Milling Tool | Ferramenta | Herramienta
Specifications
Dimensions (mm)
Order
Code Reference 181030400 016R49095-02-07-M08023 WNHU 04T310
181028600 020R49095-03-07-M10028 WNHU 04T310
181030500 025R49095-04-07-M12030 WNHU 04T310
ØDc
M
Ødg
Insert
Kg
L
Stock
a p (mm)
A
WNHU 04T310
Inserts | Pastilhas | Plaquitas
S
iC
Grades
1110783
ISO Ref.
M6 G1 54 G4 68 P3 78 P3 G6 I5 G1 54 G4 68 P3 66 I5 10 D6 P3 G6 I5 M6 D4
( 1 )
Geometry
Code
Grade Code
( 2 )
Dimensions
(mm)
iC
S
I
R
WNHU 04T310
Cutter
ØDc Insert Screw Key (Torx) Torque Value
R49095 – 16-25 P0250704 XT08 1,2
R
A - 54
PAG A - 179
PAG A - 204
PAG A - 55
