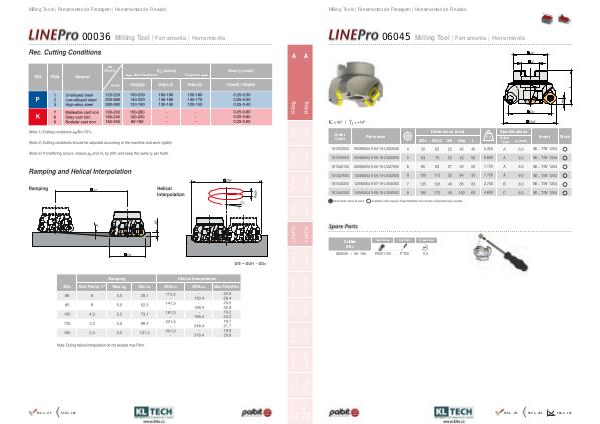

PALBIT - katalog | KL-TECH s.r.o. | www.klte.cz Palbit_katalog | Page 119

Milling Tools | Ferramentas de Fresagem | Herramientas de Fresado
06045
Milling Tool | Ferramenta | Herramienta
Specifications
Dimensions (mm)
Order
Code Reference 181003500 050A06045-04-19-U022040 SE…T/W 1204
181003600 063A06045-05-19-U022050 SE…T/W 1204
181040100 080A06045-06-19-U027050 SE…T/W 1204
181027500 100A06045-06-19-U032050 SE…T/W 1204
181040200 125A06045-07-19-U040063 SE…T/W 1204
181040300 160A06045-08-19-U040063 SE…T/W 1204
ØDc
ØDc2
Ød
Ødg
L
Kg
Arbor
Type
Insert
Stock
a p (mm)
Cutter
ØDc
A06045 – 50-160
Insert Screw Key (Torx)
P0501100 PT20
Torque Value
5,0
A
A - 118
