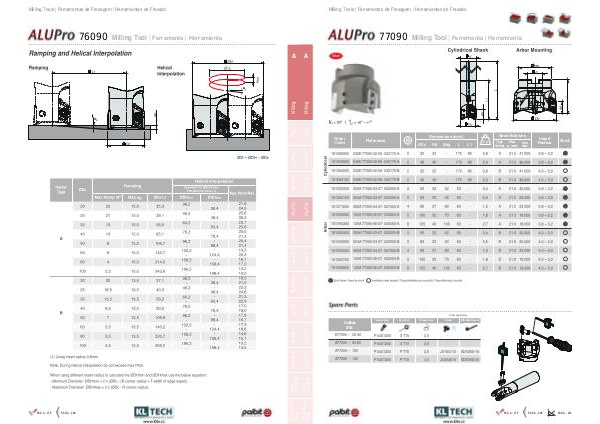

PALBIT - katalog | KL-TECH s.r.o. | www.klte.cz Palbit_katalog | Page 111

Milling Tools | Ferramentas de Fresagem | Herramientas de Fresado
77090
Milling Tool | Ferramenta | Herramienta
Specifications
Dimensions (mm)
Order
Code Reference
181069800 032E77090-02-06-032170-A
181093900 040E77090-02-06-040170-A
181094000 032E77090-02-06-032170-B
181094100 040E77090-02-06-040170-B
181093000 050A77090-03-07-022050-A
181093100 063A77090-03-07-022050-A
181071600 080A77090-04-07-027063-A
181093200 100A77090-05-07-032063-A
181093300 125A77090-06-07-040063-A
181093400 050A77090-03-07-022050-B
181093500 063A77090-03-07-022050-B
181093600 080A77090-04-07-027063-B
181093700 100A77090-05-07-032063-B
181093800 125A77090-06-07-040063-B
ØDc
Ød
Ødg
L
L1
Kg
Type
Max.
rpm
Holder a p (mm) max
Insert
Radius
Stock
Order separately
Insert Screw Key (Torx) Torque Value Screw DIN 6368 Wrench
E77090 – 32-40 P0401200 XT15 3,0 - -
A77090 – 50-80 P0401200 XT15 3,0 - -
A77090 – 100 P0401200 PT15 3,0 J0164110 SD6368-16
A77090 – 125 P0401200 PT15 3,0 J0204610 SD6368-20
Cutter
ØDc
A
A - 110
PAG A - 179
PAG A - 204
PAG A - 112
