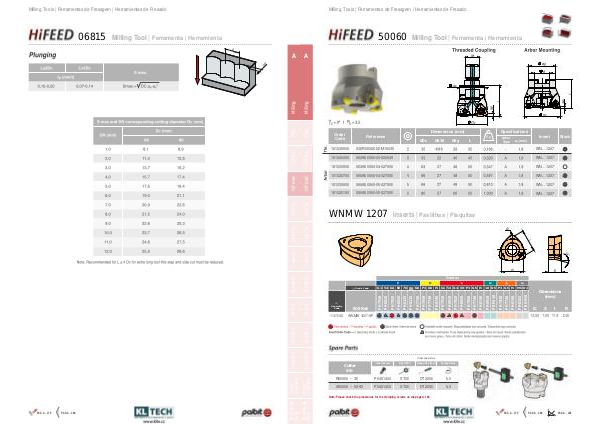

Milling Tools | Ferramentas de Fresagem | Herramientas de Fresado
50060
Milling Tool | Ferramenta | Herramienta
Specifications
Dimensions (mm)
Order
Code Reference 181039000 035R50060-02-M16035 WN… 1207
181020400 052A50060-03-022045 WN… 1207
181033900 063A50060-04-027050 WN… 1207
181028700 066A50060-04-027050 WN… 1207
181035900 066A50060-05-027050 WN… 1207
181020100 080A50060-05-027050 WN… 1207
ØDc
WNMW 1207
Ød/M
Ødg
Kg
L
Arbor
Type
Insert
Stock
a p (mm)
Inserts | Pastilhas | Plaquitas
A
WNMW 1207-SP
1121148 ISO Ref.
( 1 )
Geometry
Code
G1 54 G4 68 78 86 G6 P3 G6 I5 G1 54 G4 68 P3 G6 I5 10 D6 P3 G6 I5 M6 D4
Grade Code
( 2 )
Dimensions
(mm)
iC
S
I
R
Grades
Order separately
Insert Screw Key (Torx) Torque Key (Torx) Torque Value
R50060 – 35 P0451400 XT20 DT2050 5,0
A50060 – 52-80 P0451400 XT20 DT2050 5,0
Cutter
ØDc
Note: Please check the procedures for the clamping screws on the page A-183.
