Envirolok Bank Stabilization

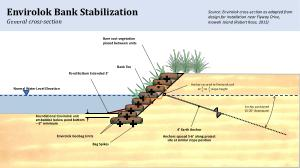

General cross-section
Source : Envirolok cross-section as adapted from design for installation near Flyway Drive , Kiawah Island ( Robert Race , 2015 )
Bare root vegetation placed between units
Pond Bottom Extended 3 ’
Bank Toe
Normal Water Level Elevation
Anchor secured to Envirolok unit at 1 to 2 slope height
2 3
Foundational Envirolok unit embedded below pond bottom – 6 ” minimum
Envirolok Geobag Units Bag Spikes
4 ’ Earth Anchor Anchors spaced 5-6 ’ along project site at similar slope position
Anchor positioned 15-20 ° downward
