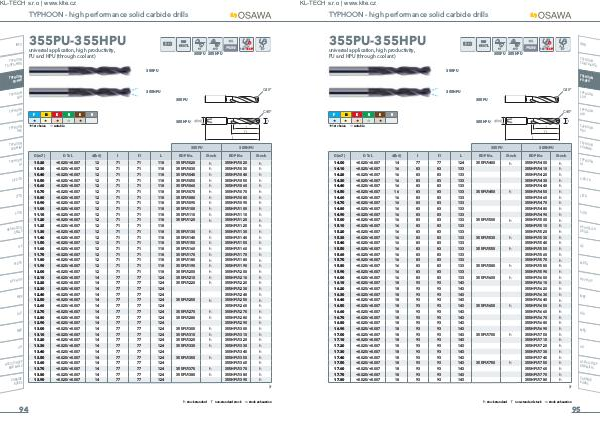

TYPHOON- high performance solid carbide drills

355PU-355HPU universal application, high productivity, PU and HPU( through coolant)

5XD

DIN 6537L

355PU

355HPU

140 °+ C45 °

INFO

TYPHOON TA-HTA-4HTA

355PU

			TYPHOON PU-HPU
355HPU	355PU	C45 °	TYPHOON SUH

P	M	K	N	S	H
�	�	�	�	�
� 1st choice		� suitable

355HPU

C45 °

TYPHOON ALH

TYPHOON HRC

355PU

355HPU

TYPHOON SUH MINI

D( m7)	D Tol.	d( h6)	l	l1	L	EDP No.	Stock	EDP No.	Stock
14.00	+ 0.025 /+ 0.007	14	77	77	124	355PU1400	h	355HPU1400	h
14.10	+ 0.025 /+ 0.007	16	83	83	133			355HPU1410	h
14.20	+ 0.025 /+ 0.007	16	83	83	133			355HPU1420	h
14.30	+ 0.025 /+ 0.007	16	83	83	133			355HPU1430	h
14.40	+ 0.025 /+ 0.007	16	83	83	133			355HPU1440	h
14.50	+ 0.025 /+ 0.007	16	83	83	133	355PU1450	h	355HPU1450	h
14.60	+ 0.025 /+ 0.007	16	83	83	133			355HPU1460	h
14.70	+ 0.025 /+ 0.007	16	83	83	133			355HPU1470	h
14.80	+ 0.025 /+ 0.007	16	83	83	133			355HPU1480	h
14.90	+ 0.025 /+ 0.007	16	83	83	133			355HPU1490	h
15.00	+ 0.025 /+ 0.007	16	83	83	133	355PU1500	h	355HPU1500	h
15.10	+ 0.025 /+ 0.007	16	83	83	133			355HPU1510	h
15.20	+ 0.025 /+ 0.007	16	83	83	133			355HPU1520	h
15.30	+ 0.025 /+ 0.007	16	83	83	133	355PU1530	h	355HPU1530	h
15.40	+ 0.025 /+ 0.007	16	83	83	133			355HPU1540	h
15.50	+ 0.025 /+ 0.007	16	83	83	133	355PU1550	h	355HPU1550	h
15.60	+ 0.025 /+ 0.007	16	83	83	133			355HPU1560	h
15.70	+ 0.025 /+ 0.007	16	83	83	133			355HPU1570	h
15.80	+ 0.025 /+ 0.007	16	83	83	133	355PU1580	h	355HPU1580	h
15.90	+ 0.025 /+ 0.007	16	83	83	133			355HPU1590	h
16.00	+ 0.025 /+ 0.007	16	83	83	133	355PU1600	h	355HPU1600	h
16.10	+ 0.025 /+ 0.007	18	93	93	143			355HPU1610	h
16.20	+ 0.025 /+ 0.007	18	93	93	143			355HPU1620	h
16.30	+ 0.025 /+ 0.007	18	93	93	143			355HPU1630	h
16.40	+ 0.025 /+ 0.007	18	93	93	143			355HPU1640	h
16.50	+ 0.025 /+ 0.007	18	93	93	143	355PU1650	h	355HPU1650	h
16.60	+ 0.025 /+ 0.007	18	93	93	143			355HPU1660	h
16.70	+ 0.025 /+ 0.007	18	93	93	143			355HPU1670	h
16.80	+ 0.025 /+ 0.007	18	93	93	143			355HPU1680	h
16.90	+ 0.025 /+ 0.007	18	93	93	143			355HPU1690	h
17.00	+ 0.025 /+ 0.007	18	93	93	143	355PU1700	h	355HPU1700	h
17.10	+ 0.025 /+ 0.007	18	93	93	143			355HPU1710	h
17.20	+ 0.025 /+ 0.007	18	93	93	143			355HPU1720	h
17.30	+ 0.025 /+ 0.007	18	93	93	143			355HPU1730	h
17.40	+ 0.025 /+ 0.007	18	93	93	143			355HPU1740	h
17.50	+ 0.025 /+ 0.007	18	93	93	143	355PU1750	h	355HPU1750	h
17.60	+ 0.025 /+ 0.007	18	93	93	143			355HPU1760	h
17.70	+ 0.025 /+ 0.007	18	93	93	143			355HPU1770	h
17.80	+ 0.025 /+ 0.007	18	93	93	143			355HPU1780	h

TYPHOON HL

C-SD-TA

LFTA

SUTA

HSS-HSS / CO DRILLS

MDTA

HF VH / UP

MEF

ALU

MEX

HSS / CO-HSSP END MILLS

CARBIDE BURRS h stock standard f non-standard stock m stock exhaustion
