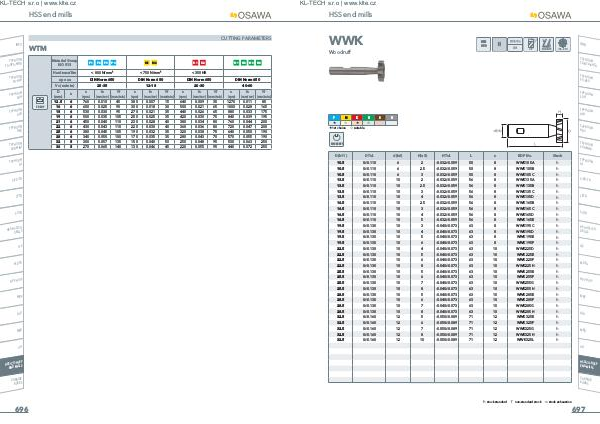

HSS end mills
WWK
DIN
850
INFO
Woodruff
TYPHOO
N
TA-HTA-4
HTA
TYPHOO
N
PU-HPU

TYPHOO
N
SUH
P M K N
+ , + ,
+ 1st choice
S
TYPHOO
N
ALH
H
TYPHOO
N
HRC
, suitable
TYPHOO
N
SUH MIN
I
WOODRUFF
D(h11) D Tol. d(h6) H(e8) H Tol. L z EDP No. Stock
10.5 0/-0.110 6 2 -0.032/-0.059 50 8 WWK105A h
10.5 0/-0.110 6 2.5 -0.032/-0.059 50 8 WWK105B h
10.5 0/-0.110 6 3 -0.032/-0.059 50 8 WWK105C h
13.5 0/-0.110 10 2 -0.032/-0.059 56 8 WWK135A h
13.5 0/-0.110 10 2.5 -0.032/-0.059 56 8 WWK135B h
13.5 0/-0.110 10 3 -0.032/-0.059 56 8 WWK135C h
13.5 0/-0.110 10 4 -0.032/-0.059 56 8 WWK135D h
16.5 0/-0.110 10 2.5 -0.032/-0.059 56 8 WWK165B h
16.5 0/-0.110 10 3 -0.032/-0.059 56 8 WWK165C h
16.5 0/-0.110 10 4 -0.032/-0.059 56 8 WWK165D h
16.5 0/-0.110 10 5 -0.032/-0.059 56 8 WWK165E h
19.5 0/-0.130 10 3 -0.040/-0.073 63 8 WWK195C h
19.5 0/-0.130 10 4 -0.040/-0.073 63 8 WWK195D h
19.5 0/-0.130 10 5 -0.040/-0.073 63 8 WWK195E h
19.5 0/-0.130 10 6 -0.040/-0.073 63 8 WWK195F h
22.5 0/-0.130 10 4 -0.040/-0.073 63 10 WWK225D h
22.5 0/-0.130 10 5 -0.040/-0.073 63 10 WWK225E h
22.5 0/-0.130 10 6 -0.040/-0.073 63 10 WWK225F h
22.5 0/-0.130 10 8 -0.040/-0.073 63 10 WWK225H h
25.5 0/-0.130 10 5 -0.040/-0.073 63 10 WWK255E h
25.5 0/-0.130 10 6 -0.040/-0.073 63 10 WWK255F h
25.5 0/-0.130 10 7 -0.040/-0.073 63 10 WWK255G h
25.5 0/-0.130 10 8 -0.040/-0.073 63 10 WWK255H h
28.5 0/-0.130 10 5 -0.040/-0.073 63 10 WWK285E h
28.5 0/-0.130 10 6 -0.040/-0.073 63 10 WWK285F h
28.5 0/-0.130 10 7 -0.040/-0.073 63 10 WWK285G h
28.5 0/-0.130 10 8 -0.040/-0.073 63 10 WWK285H h
32.5 0/-0.160 12 5 -0.050/-0.089 71 12 WWK325E h
32.5 0/-0.160 12 6 -0.050/-0.089 71 12 WWK325F h
32.5 0/-0.160 12 7 -0.050/-0.089 71 12 WWK325G h
32.5 0/-0.160 12 8 -0.050/-0.089 71 12 WWK325H h
32.5 0/-0.160 12 10 -0.050/-0.089 71 12 WWK325L h
TYPHOO
N
HL
C-SD-TA
LFTA
SUTA
HSS-HSS
/CO
DRILLS
G2
MDTA
HF VH/U
P
MEF
ALU
MEX
UH
HSS/CO
-HSSP
END MIL
LS
CARBIDE
BURRS
h stock standard
f non-standard stock
m stock exhaustion
