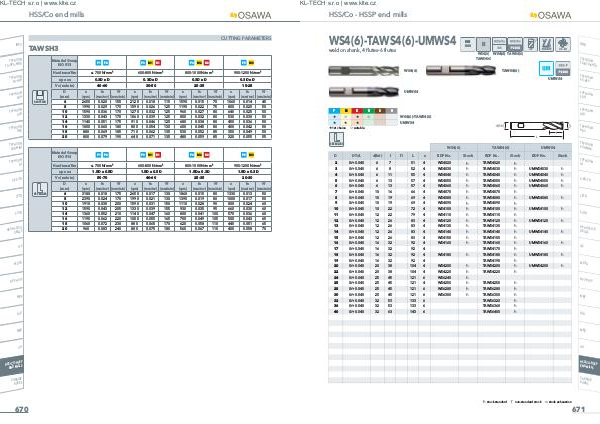

OSAWA - katalog | KL-TECH s.r.o. | www.klte.cz | Page 673

KL-TECH s. r. o | www. klte. cz

HSS / Co- HSSP end mills
WS4( 6)-TAWS4( 6)-UMWS4 weldon shank, 4 flutes-6 flutes	DIN 844	WS4( 6) WS4( 6) TAWS4( 6) TAWS4( 6)	INFO TYPHOON TA-HTA-4HTA

WS4( 6) TAWS4( 6)

UMWS4

TYPHOON PU-HPU

UMWS4

TYPHOON SUH

P	M	K	N	S	H
�	�	�	�		WS4( 6)-TAWS4( 6)
�	�	�			UMWS4
� 1st choice		� suitable

TYPHOON ALH

TYPHOON HRC

SIDE MILLING

WS4( 6) TAWS4( 6) UMWS4

TYPHOON SUH MINI

D	D Tol.	d( h6)	l	l1	L	z	EDP No.	Stock	EDP No.	Stock	EDP No.	Stock
2	0 /+ 0.040	6	7		51	4	WS4020	h	TAWS4020	h
3	0 /+ 0.040	6	8		52	4	WS4030	h	TAWS4030	h	UMWS4030	h
4	0 /+ 0.040	6	11		55	4	WS4040	h	TAWS4040	h	UMWS4040	h
5	0 /+ 0.040	6	13		57	4	WS4050	h	TAWS4050	h	UMWS4050	h
6	0 /+ 0.040	6	13		57	4	WS4060	h	TAWS4060	h	UMWS4060	h
7	0 /+ 0.040	10	16		66	4	WS4070	h	TAWS4070	h
8	0 /+ 0.040	10	19		69	4	WS4080	h	TAWS4080	h	UMWS4080	h
9	0 /+ 0.040	10	19		69	4	WS4090	h	TAWS4090	h
10	0 /+ 0.040	10	22		72	4	WS4100	h	TAWS4100	h	UMWS4100	h
11	0 /+ 0.040	12	22		79	4	WS4110	h	TAWS4110	h
12	0 /+ 0.040	12	26		83	4	WS4120	h	TAWS4120	h	UMWS4120	h
13	0 /+ 0.040	12	26		83	4	WS4130	h	TAWS4130	h
14	0 /+ 0.040	12	26		83	4	WS4140	h	TAWS4140	h	UMWS4140	h
15	0 /+ 0.040	12	26		83	4	WS4150	h	TAWS4150	h
16	0 /+ 0.040	16	32		92	4	WS4160	h	TAWS4160	h	UMWS4160	h
17	0 /+ 0.040	16	32		92	4			TAWS4170	h
18	0 /+ 0.040	16	32		92	4	WS4180	h	TAWS4180	h	UMWS4180	h
19	0 /+ 0.040	16	32		92	4			TAWS4190	h
20	0 /+ 0.040	20	38		104	4	WS4200	h	TAWS4200	h	UMWS4200	h
22	0 /+ 0.040	20	38		104	4	WS4220	h	TAWS4220	h
24	0 /+ 0.040	25	45		121	6	WS6240	h
25	0 /+ 0.040	25	45		121	4	WS4250	h	TAWS4250	h
28	0 /+ 0.040	25	45		121	6	WS6280	h	TAWS6280	h
30	0 /+ 0.040	25	45		121	6	WS6300	h	TAWS6300	h
32	0 /+ 0.040	32	53		133	6			TAWS6320	h
36	0 /+ 0.040	32	53		133	6			TAWS6360	h
40	0 /+ 0.040	32	63		143	6			TAWS6400	h
