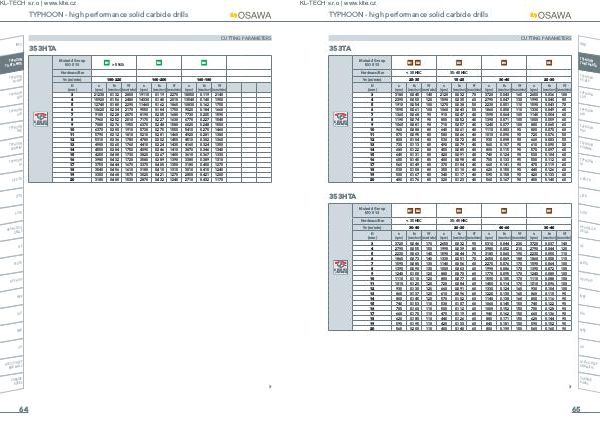

KL-TECH s.r.o | www.klte.cz TYPHOON - high performance solid carbide drills CUTTING PARAMETERS INFO 353HTA N TYPHOO HTA TA-HTA-4 Material Group ISO 513 N TYPHOO ALH N TYPHOO HL C-SD-TA LFTA SUTA /CO HSS-HSS DRILLS G2 MDTA P HF VH/U MEF ALU MEX UH -HSSP HSS/CO LS END MIL CARBIDE BURRS 64 180-220 Vc (m/min) N TYPHOO SUH N TYPHOO I SUH MIN N2 > 5% Si N4 Hardness/Rm N TYPHOO PU-HPU N TYPHOO HRC N1 Ø RUN OUT <0.02mm D (mm) n (rpm) 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21230 15920 12740 10620 9100 7960 7080 6370 5790 5310 4900 4550 4250 3980 3750 3540 3350 3180 160-200 fn Vf (mm/rev) (mm/min) 0.132 0.156 0.180 0.204 0.228 0.252 0.276 0.300 0.312 0.336 0.360 0.384 0.408 0.432 0.444 0.456 0.468 0.480 2800 2480 2290 2170 2070 2010 1950 1910 1810 1780 1760 1750 1730 1720 1670 1610 1570 1530 n (rpm) 19110 14330 11460 9550 8190 7170 6370 5730 5210 4780 4410 4090 3820 3580 3370 3180 3020 2870 160-180 fn Vf (mm/rev) (mm/min) 0.119 0.140 0.162 0.184 0.205 0.227 0.248 0.270 0.281 0.302 0.324 0.346 0.367 0.389 0.400 0.410 0.421 0.432 2270 2010 1860 1750 1680 1630 1580 1550 1460 1450 1430 1410 1400 1390 1350 1310 1270 1240 n (rpm) 18050 13540 10830 9020 7730 6770 6020 5410 4920 4510 4160 3870 3610 3380 3180 3010 2850 2710 fn Vf (mm/rev) (mm/min) 0.119 0.140 0.162 0.184 0.205 0.227 0.248 0.270 0.281 0.302 0.324 0.346 0.367 0.389 0.400 0.410 0.421 0.432 2140 1900 1750 1660 1590 1540 1500 1460 1380 1360 1350 1340 1330 1310 1270 1240 1200 1170
