UH - 45÷70 HRC
INFO
N
TYPHOO
HTA
TA-HTA-4

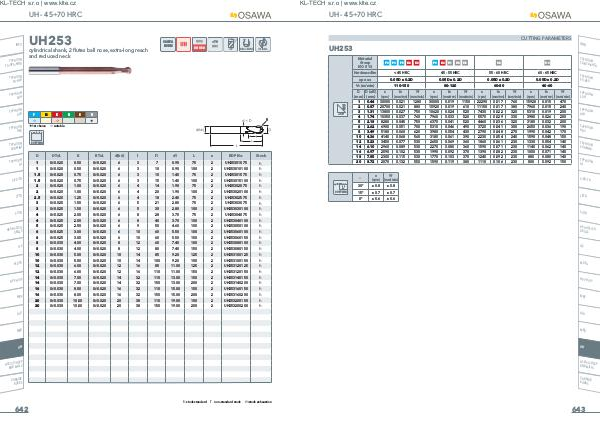

UH253
OSAWA
NORM
cylindrical shank, 2 flutes ball nose, extra-long reach
and reduced neck
<70
N
TYPHOO
PU-HPU
N
TYPHOO
SUH
N
TYPHOO
ALH
P
M
,
N
TYPHOO
HRC + 1st choice
N
TYPHOO
I
SUH MIN COPYING
N
TYPHOO
HL
C-SD-TA
LFTA
SUTA
/CO
HSS-HSS
DRILLS
G2
MDTA
P
HF VH/U
MEF
K
N
S
,
H
R
+
, suitable
D D Tol. R R Tol. d(h6) l l1 d1 L z EDP No. Stock
1 0/-0.020 0.50 0/-0.020 6 3 7 0.90 75 2 UH25301075 h
1 0/-0.020 0.50 0/-0.020 6 3 10 0.90 100 2 UH253010100 h
1.5 0/-0.020 0.75 0/-0.020 6 3 10 1.40 75 2 UH25301575 h
1.5 0/-0.020 0.75 0/-0.020 6 3 15 1.40 100 2 UH253015100 h
2 0/-0.020 1.00 0/-0.020 6 4 14 1.90 75 2 UH25302075 h
2 0/-0.020 1.00 0/-0.020 6 4 20 1.90 100 2 UH253020100 h
2.5 0/-0.020 1.25 0/-0.020 6 4 18 2.40 75 2 UH25302575 h
3 0/-0.025 1.50 0/-0.020 6 5 21 2.80 75 2 UH25303075 h
3 0/-0.025 1.50 0/-0.020 6 5 30 2.80 100 2 UH253030100 h
4 0/-0.025 2.00 0/-0.020 6 8 28 3.70 75 2 UH25304075 h
4 0/-0.025 2.00 0/-0.020 6 8 40 3.70 100 2 UH253040100 h
5 0/-0.025 2.50 0/-0.020 6 9 50 4.60 100 2 UH253050100 h
6 0/-0.025 3.00 0/-0.020 6 10 60 5.50 100 2 UH253060100 h
6 0/-0.025 3.00 0/-0.020 6 10 60 5.50 150 2 UH253060150 h
8 0/-0.030 4.00 0/-0.020 8 12 60 7.40 100 2 UH253080100 h
8 0/-0.030 4.00 0/-0.020 8 12 80 7.40 150 2 UH253080150 h
10 0/-0.030 5.00 0/-0.020 10 14 85 9.20 125 2 UH253100125 h
10 0/-0.030 5.00 0/-0.020 10 14 100 9.20 150 2 UH253100150 h
12 0/-0.030 6.00 0/-0.020 12 16 85 11.00 125 2 UH253120125 h
12 0/-0.030 6.00 0/-0.020 12 16 110 11.00 150 2 UH253120150 h
14 0/-0.030 7.00 0/-0.020 14 32 110 13.00 150 2 UH253140150 h
14 0/-0.030 7.00 0/-0.020 14 32 150 13.00 200 2 UH253140200 h
16 0/-0.030 8.00 0/-0.020 16 32 110 15.00 150 2 UH253160150 h
16 0/-0.030 8.00 0/-0.020 16 32 150 15.00 200 2 UH253160200 h
20 0/-0.030 10.00 0/-0.020 20 38 110 19.00 150 2 UH253200150 h
20 0/-0.030 10.00 0/-0.020 20 38 150 19.00 200 2 UH253200200 h
ALU
MEX
UH
-HSSP
HSS/CO LS
END MIL
CARBIDE
BURRS
h stock standard
642
f non-standard stock
m stock exhaustion
