UH - 45÷70 HRC
INFO

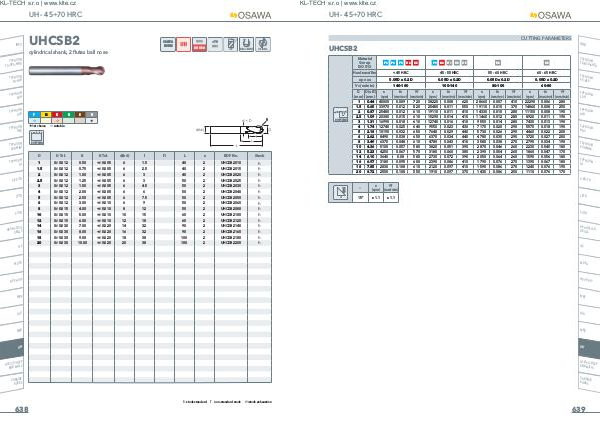

UHCSB2
OSAWA
NORM
<70
cylindrical shank, 2 flutes ball nose
N
TYPHOO
HTA
TA-HTA-4
N
TYPHOO
PU-HPU
N
TYPHOO
SUH
N
TYPHOO
ALH
P
M
,
N
TYPHOO
HRC + 1st choice
N
TYPHOO
I
SUH MIN COPYING
N
TYPHOO
HL
C-SD-TA
LFTA
SUTA
/CO
HSS-HSS
DRILLS
G2
K
N
S
H
,
R
+
, suitable
D D Tol. R R Tol. d(h6) l L z EDP No. Stock
1 0/-0.012 0.50 +/-0.005 6 1.5
l1
40 2 UHCSB2010 h
1.5 0/-0.012 0.75 +/-0.005 6 2.5 40 2 UHCSB2015 h
2 0/-0.012 1.00 +/-0.005 6 3 40 2 UHCSB2020 h
2.5 0/-0.012 1.25 +/-0.005 6 3 50 2 UHCSB2025 h
3 0/-0.012 1.50 +/-0.005 6 4.5 50 2 UHCSB2030 h
4 0/-0.012 2.00 +/-0.005 6 6 50 2 UHCSB2040 h
5 0/-0.012 2.50 +/-0.005 6 7.5 50 2 UHCSB2050 h
6 0/-0.012 3.00 +/-0.010 6 9 50 2 UHCSB2060 h
8 0/-0.015 4.00 +/-0.010 8 12 50 2 UHCSB2080 h
10 0/-0.015 5.00 +/-0.010 10 15 60 2 UHCSB2100 h
12 0/-0.015 6.00 +/-0.010 12 18 60 2 UHCSB2120 h
14 0/-0.030 7.00 +/-0.020 14 32 90 2 UHCSB2140 h
16 0/-0.030 8.00 +/-0.020 16 32 90 2 UHCSB2160 h
18 0/-0.030 9.00 +/-0.020 18 38 100 2 UHCSB2180 h
20 0/-0.030 10.00 +/-0.020 20 38 100 2 UHCSB2200 h
MDTA
P
HF VH/U
MEF
ALU
MEX
UH
-HSSP
HSS/CO LS
END MIL
CARBIDE
BURRS
h stock standard
638
f non-standard stock
m stock exhaustion
