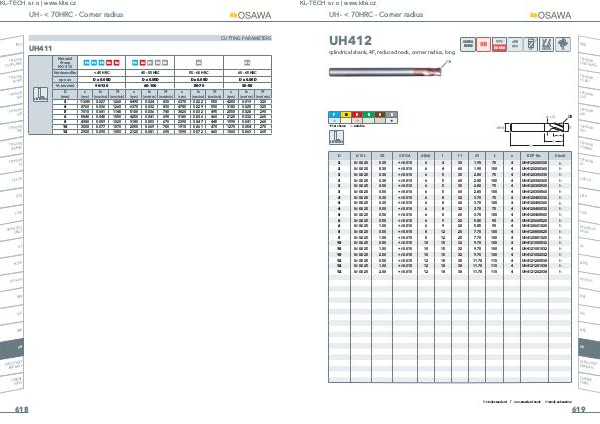

UH - < 70HRC - Corner radius
UH412
OSAWA
NORM
<70
INFO
cylindrical shank, 4F, reduced neck, corner radius, long
TYPHOO
N
TA-HTA-4
HTA
CR
TYPHOO
N
PU-HPU
TYPHOO
N
SUH
P
M
,
K
N
S
,
+ 1st choice
H
CR
+
, suitable
TYPHOO
N
ALH
TYPHOO
N
HRC
SIDE MILLING
TYPHOO
N
SUH MIN
I
D D Tol. CR CR Tol. d(h6) l l1 d1 L z EDP No. Stock
2 0/-0.020 0.30 +/-0.010 6 4 30 1.90 75 4 UH4120200330 h
2 0/-0.020 0.30 +/-0.010 6 4 60 1.90 100 4 UH4120200360 h
3 0/-0.025 0.30 +/-0.010 6 5 30 2.80 75 4 UH4120300330 h
3 0/-0.025 0.30 +/-0.010 6 5 60 2.80 100 4 UH4120300360 h
3 0/-0.025 0.50 +/-0.010 6 5 30 2.80 75 4 UH4120300530 h
3 0/-0.025 0.50 +/-0.010 6 5 60 2.80 100 4 UH4120300560 h
4 0/-0.025 0.30 +/-0.010 6 8 32 3.70 75 4 UH4120400332 h
4 0/-0.025 0.30 +/-0.010 6 8 60 3.70 100 4 UH4120400360 h
4 0/-0.025 0.50 +/-0.010 6 8 32 3.70 75 4 UH4120400532 h
4 0/-0.025 0.50 +/-0.010 6 8 60 3.70 100 4 UH4120400560 h
6 0/-0.025 0.50 +/-0.010 6 9 20 5.85 90 4 UH4120600520 h
6 0/-0.025 1.00 +/-0.010 6 9 20 5.85 90 4 UH4120601020 h
8 0/-0.025 0.50 +/-0.015 8 12 25 7.70 100 4 UH4120800525 h
8 0/-0.025 1.00 +/-0.015 8 12 25 7.70 100 4 UH4120801025 h
10 0/-0.025 0.50 +/-0.015 10 15 32 9.70 100 4 UH4121000532 h
10 0/-0.025 1.00 +/-0.015 10 15 32 9.70 100 4 UH4121001032 h
10 0/-0.025 2.00 +/-0.015 10 15 32 9.70 100 4 UH4121002032 h
12 0/-0.025 0.50 +/-0.015 12 18 38 11.70 110 4 UH4121200538 h
12 0/-0.025 1.00 +/-0.015 12 18 38 11.70 110 4 UH4121201038 h
12 0/-0.025 2.00 +/-0.015 12 18 38 11.70 110 4 UH4121202038 h
