UH - < 70HRC - Corner radius

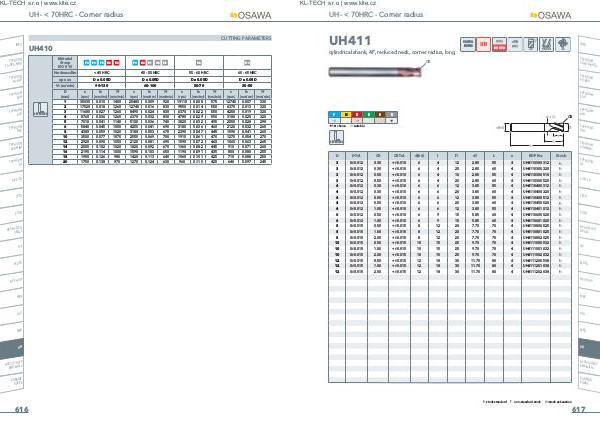

UH411
OSAWA
NORM
<70
INFO
cylindrical shank, 4F, reduced neck, corner radius, long
TYPHOO
N
TA-HTA-4
HTA
CR
TYPHOO
N
PU-HPU
TYPHOO
N
SUH
P
M
,
K
N
S
,
+ 1st choice
H
CR
+
, suitable
TYPHOO
N
ALH
TYPHOO
N
HRC
SIDE MILLING
TYPHOO
N
SUH MIN
I
D D Tol. CR CR Tol. d(h6) l l1 d1 L z EDP No. Stock
3 0/-0.012 0.30 +/-0.010 6 4 12 2.85 55 4 UH4110300312 h
3 0/-0.012 0.30 +/-0.010 6 4 20 2.85 60 4 UH4110300320 h
3 0/-0.012 0.50 +/-0.010 6 4 10 2.85 55 4 UH4110300510 h
3 0/-0.012 0.50 +/-0.010 6 4 20 2.85 60 4 UH4110300520 h
4 0/-0.012 0.30 +/-0.010 6 6 12 3.85 55 4 UH4110400312 h
4 0/-0.012 0.30 +/-0.010 6 6 20 3.85 60 4 UH4110400320 h
4 0/-0.012 0.50 +/-0.010 6 6 12 3.85 55 4 UH4110400512 h
4 0/-0.012 0.50 +/-0.010 6 6 20 3.85 60 4 UH4110400520 h
4 0/-0.012 1.00 +/-0.010 6 6 12 3.85 55 4 UH4110401012 h
6 0/-0.012 0.50 +/-0.010 6 9 15 5.85 60 4 UH4110600520 h
6 0/-0.012 1.00 +/-0.010 6 9 15 5.85 60 4 UH4110601020 h
8 0/-0.015 0.50 +/-0.015 8 12 20 7.70 70 4 UH4110800525 h
8 0/-0.015 1.00 +/-0.015 8 12 20 7.70 70 4 UH4110801025 h
8 0/-0.015 2.00 +/-0.015 8 12 20 7.70 70 4 UH4110802025 h
10 0/-0.015 0.50 +/-0.015 10 15 25 9.70 70 4 UH4111000532 h
10 0/-0.015 1.00 +/-0.015 10 15 25 9.70 70 4 UH4111001032 h
h
10 0/-0.015 2.00 +/-0.015 10 15 25 9.70 70 4 UH4111002032 12 0/-0.015 0.50 +/-0.015 12 18 30 11.70 80 4 UH4111200538 h
12 0/-0.015 1.00 +/-0.015 12 18 30 11.70 80 4 UH4111201038 h
12 0/-0.015 2.00 +/-0.015 12 18 30 11.70 80 4 UH4111202038 h
TYPHOO
N
HL
C-SD-TA
LFTA
SUTA
HSS-HSS
/CO
DRILLS
G2
MDTA
HF VH/U
P
MEF
ALU
MEX
UH
HSS/CO
-HSSP
END MIL
LS
CARBIDE
BURRS
h stock standard
f non-standard stock
m stock exhaustion
