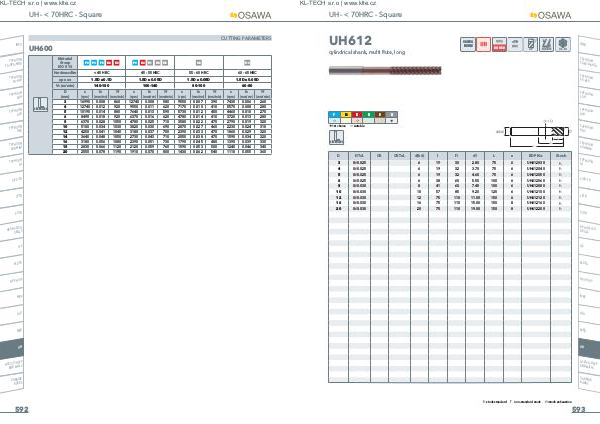

KL-TECH s.r.o | www.klte.cz UH - < 70HRC - Square CUTTING PARAMETERS INFO UH600 Material Group ISO 513 N TYPHOO HTA TA-HTA-4 N TYPHOO PU-HPU N TYPHOO SUH N TYPHOO ALH N TYPHOO HRC N TYPHOO I SUH MIN N TYPHOO HL C-SD-TA LFTA SUTA /CO HSS-HSS DRILLS G2 MDTA P HF VH/U MEF ALU MEX UH -HSSP HSS/CO LS END MIL CARBIDE BURRS 592 SIDE MILLING P3 P4 P5 K2 K3 P6 K4 H1 H4 H5 H2 H3 Hardness/Rm < 45 HRC 45 - 55 HRC 55 - 60 HRC 60 - 65 HRC ap x ae 1.5D x 0.1D 1.5D x 0.05D 1.5D x 0.05D 1.5D x 0.05D Vc (m/min) 140-180 100-140 80-100 D (mm) n (rpm) 3 4 5 6 8 10 12 14 16 18 20 16990 12740 10190 8490 6370 5100 4250 3640 3180 2830 2550 fn Vf (mm/rev) (mm/min) 0.008 0.012 0.014 0.018 0.028 0.034 0.041 0.048 0.056 0.066 0.078 860 920 880 920 1050 1030 1040 1050 1080 1120 1190 n (rpm) 12740 9550 7640 6370 4780 3820 3180 2730 2390 2120 1910 fn Vf (mm/rev) (mm/min) 0.008 0.011 0.013 0.016 0.025 0.030 0.037 0.043 0.051 0.059 0.070 580 620 590 620 710 690 700 710 730 760 800 n (rpm) 9550 7170 5730 4780 3580 2870 2390 2050 1790 1590 1430 60-80 fn Vf (mm/rev) (mm/min) 0.007 0.010 0.012 0.014 0.022 0.027 0.033 0.038 0.045 0.053 0.062 390 410 400 410 470 460 470 470 480 500 540 n (rpm) 7430 5570 4460 3720 2790 2230 1860 1590 1390 1240 1110 fn Vf (mm/rev) (mm/min) 0.006 0.008 0.010 0.013 0.019 0.024 0.029 0.034 0.039 0.046 0.055 260 280 270 280 320 310 320 320 330 340 360
