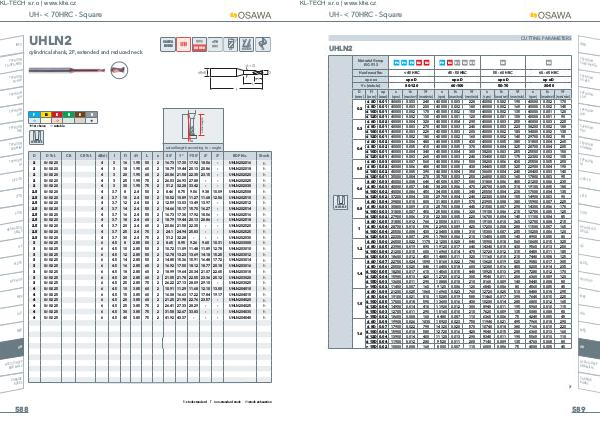

UH - < 70HRC - Square
INFO
UHLN2
OSAWA
NORM
<70
cylindrical shank, 2F, extended and reduced neck
N
TYPHOO
HTA
TA-HTA-4
N
TYPHOO
PU-HPU
N
TYPHOO
SUH
P
M
K
,
N
TYPHOO
HRC + 1st choice
N
TYPHOO
I
SUH MIN SQUARE RIB
N
TYPHOO
HL
C-SD-TA
LFTA
SUTA
/CO
HSS-HSS
DRILLS
G2
MDTA
P
HF VH/U
MEF
ALU
N
,
S
H
N
TYPHOO
ALH
+
, suitable
α
actual length according to _ angle
D D Tol. d(h6) l l1 d1 L z 3° EDP No. Stock
2 0/-0.020
CR
CR Tol.
4 3 16 1.95 50 2 16.73 17.30 17.92 18.56
30’
1°
1°30’
- UHLN202016 h
2 0/-0.020 4 3 18 1.95 60 2 18.79 19.44 20.13 20.86 - UHLN202018 h
2 0/-0.020 4 3 20 1.95 60 2 20.86 21.58 22.35 23.15 - UHLN202020 h
2 0/-0.020 4 3 25 1.95 75 2 26.03 26.93 27.88 - - UHLN202025 h
2 0/-0.020 4 3 30 1.95 75 2 31.2 32.28 33.42 - - UHLN202030 h
2.5 0/-0.020 4 3.7 8 2.4 50 2 8.46 8.75 9.38 10.09 UHLN202508 h
2.5 0/-0.020 4 3.7 10 2.4 50 2 10.52 10.89 11.27 11.68 12.56 UHLN202510 h
2.5 0/-0.020 4 3.7 12 2.4 50 2 12.59 13.03 13.49 13.97 - UHLN202512 h
2.5 0/-0.020 4 3.7 14 2.4 50 2 14.66 15.17 15.70 16.27 - UHLN202514 h
2.5 0/-0.020 4 3.7 16 2.4 50 2 16.73 17.30 17.92 18.56 - UHLN202516 h
2.5 0/-0.020 4 3.7 18 2.4 60 2 18.79 19.44 20.13 20.86 - UHLN202518 h
2.5 0/-0.020 4 3.7 20 2.4 60 2 20.86 21.58 22.35 - - UHLN202520 h
2.5 0/-0.020 4 3.7 25 2.4 75 2 24.1 24.94 25.83 - - UHLN202525 h
2.5 0/-0.020 4 3.7 30 2.4 75 2 31.2 32.28 - - - UHLN202530 h
3 0/-0.025 6 4.5 8 2.85 50 2 8.65 8.95 9.26 9.60 10.31 UHLN203008 h
3 0/-0.025 6 4.5 10 2.85 50 2 10.72 11.09 11.48 11.89 12.78 UHLN203010 h
3 0/-0.025 6 4.5 12 2.85 50 2 12.78 13.23 13.69 14.18 15.25 UHLN203012 h
3 0/-0.025 6 4.5 14 2.85 50 2 14.85 15.36 15.91 16.48 17.72 UHLN203014 h
3 0/-0.025 6 4.5 16 2.85 60 2 16.92 17.50 18.12 18.77 20.18 UHLN203016 h
3 0/-0.025 6 4.5 18 2.85 60 2 18.99 19.64 20.34 21.07 22.65 UHLN203018 h
3 0/-0.025 6 4.5 20 2.85 60 2 21.05 21.78 22.55 23.36 25.12 UHLN203020 h
3 0/-0.025 6 4.5 25 2.85 75 2 26.22 27.13 28.09 29.10 UHLN203025 h
4 0/-0.025 6 4.5 10 3.85 60 2 10.91 11.29 11.68 12.10 13.00 UHLN204010 h
4 0/-0.025 6 4.5 15 3.85 60 2 16.08 16.63 17.22 17.84 19.17 UHLN204015 h
4 0/-0.025 6 4.5 20 3.85 60 2 21.25 21.98 22.76 23.57 - UHLN204020 h
4 0/-0.025 6 4.5 25 3.85 75 2 26.41 27.33 28.29 - - UHLN204025 h
4 0/-0.025 6 4.5 30 3.85 75 2 31.58 32.67 33.83 - - UHLN204030 h
4 0/-0.025 6 4.5 40 3.85 75 2 41.92 43.37 - - UHLN204040 h
9.06
-
2°
-
MEX
UH
-HSSP
HSS/CO LS
END MIL
CARBIDE
BURRS
h stock standard
