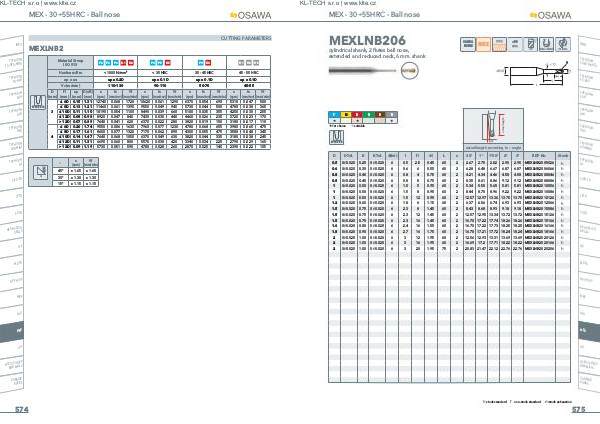

MEX - 30÷55HRC - Ball nose
MEXLNB206
OSAWA
NORM
cylindrical shank, 2 flutes ball nose,
extended and reduced neck, 6 mm. shank
<55
INFO
TYPHOO
N
TA-HTA-4
HTA
R
TYPHOO
N
PU-HPU
TYPHOO
N
SUH
M
+
+ 1st choice
K
N
S
+
, suitable
TYPHOO
N
ALH
H
P
+
TYPHOO
N
HRC
α
ROUND RIB
TYPHOO
N
SUH MIN
I
actual length according to _ angle
D D Tol. R R Tol. d(h6) l l1 d1 L z 30’ 1° 1°30’ 2° 3° EDP No. Stock
0.5 0/-0.020 0.25 0/-0.020 6 0.5 2.5 0.45 60 2 2.67 2.75 2.82 2.90 2.90 MEXLNB2005026 h
0.6 0/-0.020 0.30 0/-0.020 6 0.6 6 0.55 60 2 6.28 6.48 6.67 6.87 6.87 MEXLNB2006066 h
0.8 0/-0.020 0.40 0/-0.020 6 0.8 4 0.75 60 2 4.21 4.34 4.46 4.58 4.58 MEXLNB2008046 h
0.8 0/-0.020 0.40 0/-0.020 6 0.8 8 0.75 60 2 8.35 8.61 8.86 9.12 9.12 MEXLNB2008086 h
1 0/-0.020 0.50 0/-0.020 6 1.5 5 0.95 60 2 5.34 5.50 5.65 5.81 5.81 MEXLNB2010056 h
1 0/-0.020 0.50 0/-0.020 6 1.5 8 0.95 60 2 8.44 8.70 8.96 9.22 9.22 MEXLNB2010086 h
1 0/-0.020 0.50 0/-0.020 6 1.5 12 0.95 60 2 12.57 12.97 13.36 13.75 13.75 MEXLNB2010126 h
1.2 0/-0.020 0.60 0/-0.020 6 1.8 6 1.15 60 2 6.37 6.56 6.74 6.93 6.93 MEXLNB2012066 h
1.5 0/-0.020 0.75 0/-0.020 6 2.3 8 1.45 60 2 8.43 8.68 8.93 9.18 9.18 MEXLNB2015086 h
1.5 0/-0.020 0.75 0/-0.020 6 2.3 12 1.45 60 2 12.57 12.95 13.34 13.72 13.72 MEXLNB2015126 h
1.5 0/-0.020 0.75 0/-0.020 6 2.3 16 1.45 60 2 16.70 17.22 17.74 18.26 18.26 MEXLNB2015166 h
1.6 0/-0.020 0.80 0/-0.020 6 2.4 16 1.55 60 2 16.70 17.22 17.73 18.25 18.25 MEXLNB2016166 h
1.8 0/-0.020 0.90 0/-0.020 6 2.7 16 1.75 60 2 16.70 17.21 17.72 18.24 18.24 MEXLNB2018166 h
2 0/-0.020 1.00 0/-0.020 6 3 12 1.95 60 2 12.56 12.93 13.31 13.69 13.69 MEXLNB2020126 h
2 0/-0.020 1.00 0/-0.020 6 3 16 1.95 60 2 16.69 17.71 18.22 18.22 MEXLNB2020166 h
2 0/-0.020 1.00 0/-0.020 6 3 20 1.95 75 2 20.83 21.47 22.12 22.76 22.76 MEXLNB2020206 h
