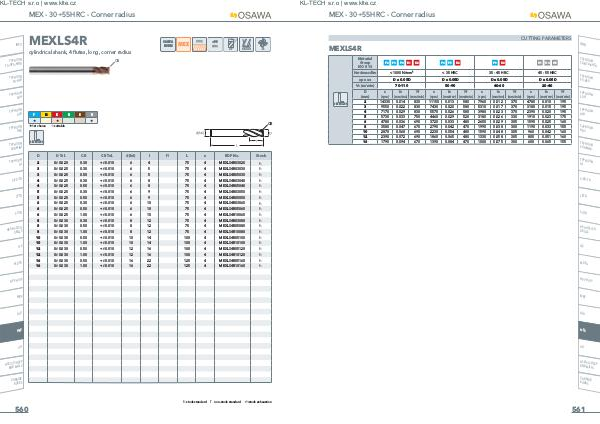

OSAWA - katalog | KL-TECH s.r.o. | www.klte.cz | Page 562

KL-TECH s.r.o | www.klte.cz
MEX - 30÷55HRC - Corner radius
INFO
MEXLS4R
OSAWA
NORM
<55
cylindrical shank, 4 flutes, long, corner radius
N
TYPHOO
HTA
TA-HTA-4
CR
N
TYPHOO
PU-HPU
N
TYPHOO
SUH
N
TYPHOO
ALH
P
M
+
N
TYPHOO
HRC + 1st choice
N
TYPHOO
I
SUH MIN SIDE MILLING
N
TYPHOO
HL
C-SD-TA
LFTA
SUTA
/CO
HSS-HSS
DRILLS
G2
MDTA
K
N
S
H
+
+
CR
, suitable
D D Tol. CR CR Tol. d(h6) l L z EDP No. Stock
2 0/-0.020 0.30 +/-0.010 6 4
l1
75 4 MEXLS4R03020 h
3 0/-0.025 0.30 +/-0.010 6 5 75 4 MEXLS4R03030 h
3 0/-0.025 0.50 +/-0.010 6 5 75 4 MEXLS4R05030 h
4 0/-0.025 0.30 +/-0.010 6 8 75 4 MEXLS4R03040 h
4 0/-0.025 0.50 +/-0.010 6 8 75 4 MEXLS4R05040 h
5 0/-0.025 0.30 +/-0.010 6 9 75 4 MEXLS4R03050 h
5 0/-0.025 0.50 +/-0.010 6 9 75 4 MEXLS4R05050 h
6 0/-0.025 0.30 +/-0.010 6 10 75 4 MEXLS4R03060 h
6 0/-0.025 0.50 +/-0.010 6 10 75 4 MEXLS4R05060 h
6 0/-0.025 1.00 +/-0.010 6 10 75 4 MEXLS4R10060 h
8 0/-0.030 0.30 +/-0.010 8 12 75 4 MEXLS4R03080 h
8 0/-0.030 0.50 +/-0.010 8 12 75 4 MEXLS4R05080 h
8 0/-0.030 1.00 +/-0.010 8 12 75 4 MEXLS4R10080 h
10 0/-0.030 0.50 +/-0.010 10 14 100 4 MEXLS4R05100 h
10 0/-0.030 1.00 +/-0.010 10 14 100 4 MEXLS4R10100 h
12 0/-0.030 0.50 +/-0.010 12 16 100 4 MEXLS4R05120 h
12 0/-0.030 1.00 +/-0.010 12 16 100 4 MEXLS4R10120 h
16 0/-0.030 0.50 +/-0.010 16 22 125 4 MEXLS4R05160 h
16 0/-0.030 1.00 +/-0.010 16 22 125 4 MEXLS4R10160 h
P
HF VH/U
MEF
ALU
MEX
UH
-HSSP
HSS/CO LS
END MIL
CARBIDE
BURRS
h stock standard
560
f non-stock standard
m stock exhaustion
