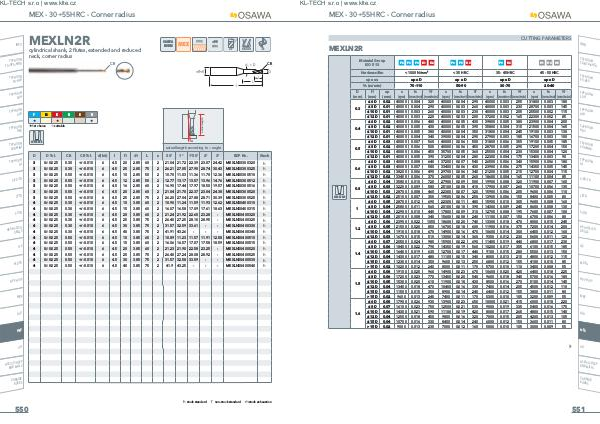

MEX- 30 ÷ 55HRC- Corner radius

CUTTING PARAMETERS

MEXLN2R

INFO

Material Group ISO 513

P2 P3 P4 K1 K2 P4 P5 K3 P6 K4 H1 H4 H5

TYPHOON TA-HTA-4HTA

Hardness / Rm < 1000 N / mm ² < 35 HRC 35- 45 HRC 45- 55 HRC ap x ae ap x D ap x D ap x D ap x D

Vc( m / min) 70-110 50-90 30-70 20-40

TYPHOON PU-HPU

D( mm)

0.3

l1( mm)

ap( mm)

n( rpm)

fn Vf( mm / rev)( mm / min)

n( rpm)

fn Vf( mm / rev)( mm / min)

n( rpm)

fn Vf( mm / rev)( mm / min)

n( rpm)

fn Vf( mm / rev)( mm / min)

≤ 6D	0.02	40000	0.004	320	40000	0.004	290	40000	0.003	255	31800	0.003	180
≤ 8D	0.01	40000	0.004	290	40000	0.003	260	40000	0.003	230	28700	0.003	145
≤ 10D	0.01	40000	0.003	260	40000	0.003	230	40000	0.003	205	25500	0.002	115
≤ 12D	0.01	40000	0.003	220	40000	0.003	200	37200	0.002	165	22300	0.002	85
≤ 6D	0.02	40000	0.006	480	40000	0.005	430	39800	0.005	380	23900	0.004	200
≤ 8D	0.02	40000	0.005	430	40000	0.005	390	35800	0.004	310	21500	0.004	165
≤ 10D	0.01	40000	0.005	380	40000	0.004	350	31800	0.004	245	19100	0.003	130
≤ 12D	0.01	40000	0.004	340	39000	0.004	290	27900	0.003	185	16700	0.003	100
≤ 6D	0.03	40000	0.007	560	40000	0.006	500	31800	0.006	355	19100	0.005	185
≤ 8D	0.02	40000	0.006	500	40000	0.006	450	28700	0.005	290	17200	0.004	150
≤ 10D	0.02	40000	0.006	450	35700	0.005	360	25500	0.004	230	15300	0.004	120
≤ 12D	0.01	40000	0.005	390	31200	0.004	280	22300	0.004	175	13400	0.003	90
≤ 6D	0.03	40000	0.008	640	37200	0.007	540	26500	0.006	340	15900	0.006	180
≤ 8D	0.03	40000	0.007	580	33400	0.006	430	23900	0.006	275	14300	0.005	145
≤ 10D	0.02	38200	0.006	490	29700	0.006	340	21200	0.005	215	12700	0.004	115
≤ 12D	0.02	33400	0.006	370	26000	0.005	260	18600	0.004	165	11100	0.004	85
≤ 6D	0.04	35800	0.010	720	27900	0.009	500	19900	0.008	320	11900	0.007	165
≤ 8D	0.03	32200	0.009	580	25100	0.008	410	17900	0.007	260	10700	0.006	135
≤ 10D	0.03	28700	0.008	460	22300	0.007	320	15900	0.006	205	9600	0.006	110
≤ 12D	0.02	25100	0.007	350	19500	0.006	250	13900	0.006	155	8400	0.005	80
≤ 6D	0.05	28700	0.012	690	22300	0.011	480	15900	0.010	305	9600	0.008	160
≤ 8D	0.04	25800	0.011	560	20100	0.010	390	14300	0.009	245	8600	0.008	130
≤ 10D	0.04	22900	0.010	440	17800	0.009	310	12700	0.008	195	7600	0.007	100
≤ 12D	0.03	20100	0.008	340	15600	0.008	240	11100	0.007	150	6700	0.006	80
≤ 6D	0.06	23900	0.022	1050	18600	0.020	740	13300	0.018	470	8000	0.015	245
≤ 8D	0.05	21500	0.020	850	16700	0.018	600	11900	0.016	375	7200	0.014	200
≤ 10D	0.04	19100	0.018	670	14900	0.016	470	10600	0.014	300	6400	0.012	160
≤ 12D	0.03	16700	0.015	510	13000	0.014	360	9300	0.012	230	5600	0.011	120
≤ 6D	0.07	20500	0.024	980	15900	0.022	690	11400	0.019	440	6800	0.017	230
≤ 8D	0.06	18400	0.022	790	14300	0.019	560	10200	0.017	355	6100	0.015	185
≤ 10D	0.05	16400	0.019	630	12700	0.017	440	9100	0.015	280	5500	0.013	150
≤ 12D	0.04	14300	0.017	480	11100	0.015	340	8000	0.013	215	4800	0.012	115
≤ 15D	0.03	12300	0.014	350	9600	0.013	250	6800	0.012	155	4100	0.010	85
> 15D	0.02	10200	0.012	240	8000	0.011	170	5700	0.010	110	3400	0.008	55
≤ 6D	0.08	19100	0.025	960	14900	0.023	670	10600	0.020	425	6400	0.018	225
≤ 8D	0.06	17200	0.023	770	13400	0.020	540	9600	0.018	345	5700	0.016	180
≤ 10D	0.05	15300	0.020	610	11900	0.018	430	8500	0.016	270	5100	0.014	145
≤ 12D	0.04	13400	0.018	470	10400	0.016	330	7400	0.014	205	4500	0.012	110
≤ 15D	0.03	11500	0.015	350	8900	0.014	240	6400	0.012	155	3800	0.011	80
> 15D	0.02	9600	0.013	240	7400	0.011	170	5300	0.010	105	3200	0.009	55
≤ 6D	0.08	17900	0.026	930	13900	0.023	650	10000	0.021	415	6000	0.018	220
≤ 8D	0.07	16100	0.023	750	12500	0.021	530	9000	0.019	335	5400	0.016	175
≤ 10D	0.06	14300	0.021	590	11100	0.019	420	8000	0.017	265	4800	0.015	140
≤ 12D	0.04	12500	0.018	450	9800	0.016	320	7000	0.015	205	4200	0.013	105
≤ 15D	0.04	10700	0.016	330	8400	0.014	240	6000	0.012	150	3600	0.011	80
> 15D	0.02	9000	0.013	230	7000	0.012	160	5000	0.010	105	3000	0.009	55
