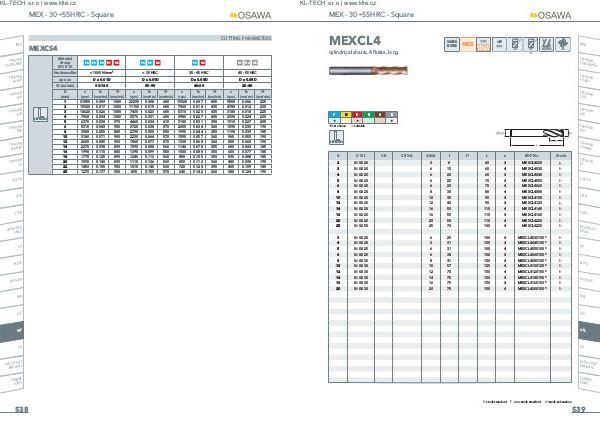

MEX - 30÷55HRC - Square
MEXCL4
OSAWA
NORM
<55
INFO
cylindrical shank, 4 flutes, long
*
TYPHOO
N
TA-HTA-4
HTA
TYPHOO
N
PU-HPU
TYPHOO
N
SUH
P
M
+
+ 1st choice
K
N
S
TYPHOO
N
ALH
H
+
, suitable
+
TYPHOO
N
HRC
SIDE MILLING
TYPHOO
N
SUH MIN
I
D D Tol. d(h6) l L z EDP No. Stock
2 0/-0.020
CR
CR Tol.
6 8
l1
60 4 MEXCL4020 h
3 0/-0.020 6 15 60 4 MEXCL4030 h
4 0/-0.020 6 20 60 4 MEXCL4040 h
5 0/-0.020 6 25 70 4 MEXCL4050 h
6 0/-0.020 6 25 70 4 MEXCL4060 h
8 0/-0.020 8 30 80 4 MEXCL4080 h
10 0/-0.020 10 35 90 4 MEXCL4100 h
12 0/-0.020 12 40 90 4 MEXCL4120 h
14 0/-0.020 16 50 110 4 MEXCL4140 h
16 0/-0.020 16 50 110 4 MEXCL4160 h
20 0/-0.020 20 50 110 4 MEXCL4200 h
25 0/-0.050 25 70 130 4 MEXCL4250 h
3 0/-0.025 6 25 100 4 MEXCL4030100 * h
4 0/-0.025 6 31 100 4 MEXCL4040100 * h
5 0/-0.025 6 31 100 4 MEXCL4050100 * h
6 0/-0.025 6 38 100 4 MEXCL4060100 * h
8 0/-0.030 8 41 100 4 MEXCL4080100 * h
10 0/-0.030 10 57 125 4 MEXCL4100125 * h
12 0/-0.030 12 75 150 4 MEXCL4120150 * h
14 0/-0.030 14 75 150 4 MEXCL4140150 * h
16 0/-0.030 16 75 150 4 MEXCL4160150 * h
20 0/-0.030 20 75 150 4 MEXCL4200150 * h
TYPHOO
N
HL
C-SD-TA
LFTA
SUTA
HSS-HSS
/CO
DRILLS
G2
MDTA
HF VH/U
P
MEF
ALU
MEX
UH
HSS/CO
-HSSP
END MIL
LS
CARBIDE
BURRS
h stock standard
f non-stock standard
m stock exhaustion
