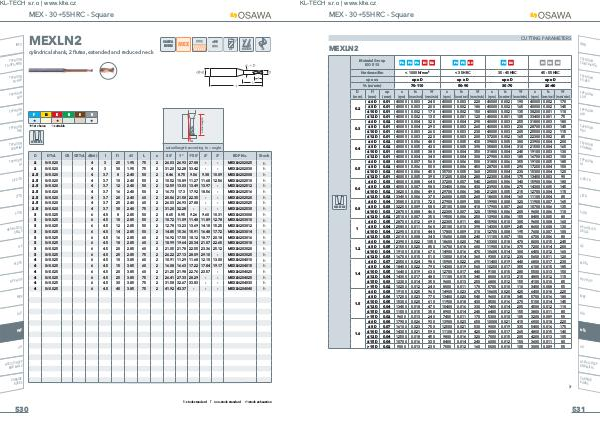

MEX - 30÷55HRC - Square
INFO
MEXLN2
OSAWA
NORM
<55
cylindrical shank, 2 flutes, extended and reduced neck
N
TYPHOO
HTA
TA-HTA-4
N
TYPHOO
PU-HPU
N
TYPHOO
SUH
P
M
+
N
TYPHOO
HRC + 1st choice
N
TYPHOO
I
SUH MIN SQUARE RIB
N
TYPHOO
HL
C-SD-TA
LFTA
SUTA
/CO
HSS-HSS
DRILLS
G2
MDTA
P
HF VH/U
K
N
+
S
H
N
TYPHOO
ALH
+
, suitable
α
actual length according to _ angle
D D Tol. l l1 d1 L z 2° 3° EDP No. Stock
2 0/-0.020
CR
CR Tol. d(h6)
4 3 25 1.95 75 2 26.03 26.93 27.88
30’
1°
- - MEXLN202025 h
2 0/-0.020 4 3 30 1.95 75 2 31.20 32.28 33.42 - - MEXLN202030 h
2.5 0/-0.020 4 3.7 8 2.40 50 2 8.46 9.38 10.09 MEXLN202508 h
2.5 0/-0.020 4 3.7 10 2.40 50 2 10.52 10.89 11.27 11.68 12.56 MEXLN202510 h
2.5 0/-0.020 4 3.7 12 2.40 50 2 12.59 13.03 13.49 13.97 MEXLN202512 h
2.5 0/-0.020 4 3.7 16 2.40 50 2 16.73 - MEXLN202516 h
2.5 0/-0.020 4 3.7 20 2.40 60 2 20.86 21.58 22.35 - - MEXLN202520 h
2.5 0/-0.020 4 3.7 25 2.40 60 2 26.03 26.93 27.88 - - MEXLN202525 h
2.5 0/-0.020 4 3.7 30 2.40 75 2 31.20 32.28 - - - MEXLN202530 h
3 0/-0.025 6 4.5 8 2.85 50 2 8.65 9.26 9.60 10.31 MEXLN203008 h
3 0/-0.025 6 4.5 10 2.85 50 2 10.72 11.09 11.48 11.89 12.78 MEXLN203010 h
3 0/-0.025 6 4.5 12 2.85 50 2 12.78 13.23 13.69 14.18 15.25 MEXLN203012 h
3 0/-0.025 6 4.5 14 2.85 50 2 14.85 15.36 15.91 16.48 17.72 MEXLN203014 h
3
