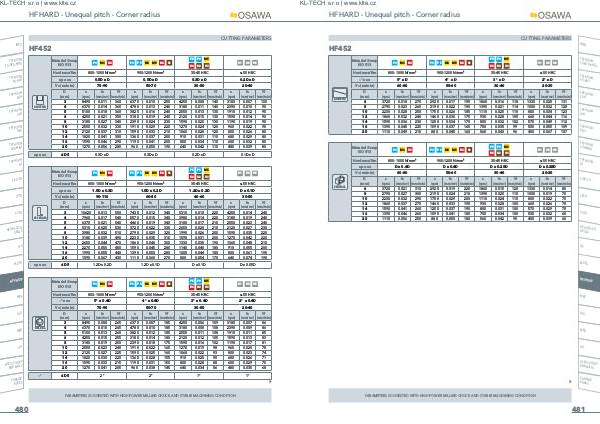

HF HARD- Unequal pitch- Corner radius

CUTTING PARAMETERS

HF452

INFO

Material Group ISO 513

P4 M4 K4 P4 P5 M4 M5 K4 S1

P5 P6 M5

K4 S2 S3

H1 H4 H5

TYPHOON TA-HTA-4HTA

RAMPING

Hardness / Rm 800-1000 N / mm ² 900-1200 N / mm ² 35-45 HRC ≤ 55 HRC � ° x ae 5 ° x D 4 ° x D 3 ° x D 2 ° x D

Vc( m / min) 60-80 50-60 30-40 20-30

D( mm) n( rpm) fn( mm / rev)

Vf( mm / min) n( rpm) fn( mm / rev)

Vf( mm / min)

6	3720	0.018	270	2920	0.017	195	1860	0.016	118	1330	0.025	131
8	2790	0.023	260	2190	0.022	190	1390	0.021	114	1000	0.032	128
10	2230	0.028	250	1750	0.026	185	1110	0.025	110	800	0.038	123
12	1860	0.032	240	1460	0.030	175	930	0.028	105	660	0.044	116
14	1590	0.036	230	1250	0.034	170	800	0.032	102	570	0.049	112
16	1390	0.040	225	1090	0.037	165	700	0.035	99	500	0.055	109
20	1110	0.049	215	880	0.045	160	560	0.043	96	400	0.067	107

TYPHOON PU-HPU

TYPHOON SUH

TYPHOON ALH

TYPHOON HRC

Material Group ISO 513

P4 M4 K4 P4 P5 M4 M5 K4 S1

P5 P6 M5

K4 S2 S3

H1 H4 H5

TYPHOON SUH MINI

VERTICAL

Hardness / Rm 800-1000 N / mm ² 900-1200 N / mm ² 35-45 HRC ≤ 55 HRC ap x ae D x 0.4D D x 0.4D D x 0.25D D x 0.25D

Vc( m / min) 60-80 50-60 30-40 20-30

D( mm) n( rpm) fn( mm / rev)

Vf( mm / min) n( rpm) fn( mm / rev)

Vf( mm / min)

6	3720	0.021	310	2920	0.019	220	1860	0.015	120	1330	0.014	80
8	2790	0.027	300	2190	0.024	210	1390	0.020	110	1000	0.019	70
10	2230	0.032	290	1750	0.029	200	1110	0.024	110	800	0.022	70
12	1860	0.037	270	1460	0.033	190	930	0.028	100	660	0.026	70
14	1590	0.041	260	1250	0.037	190	800	0.031	100	570	0.029	70
16	1390	0.046	260	1090	0.041	180	700	0.034	100	500	0.032	60
20	1110	0.056	250	880	0.050	180	560	0.042	90	400	0.039	60

TYPHOON HL

C-SD-TA

LFTA

SUTA

HSS-HSS / CO DRILLS

MDTA

HF VH / UP

MEF

ALU

MEX

HSS / CO-HSSP END MILLS

CARBIDE BURRS

PARAMETERS SUGGESTED WITH HIGH POWER MILLING CHUCK AND STABLE MACHINING CONDITION
