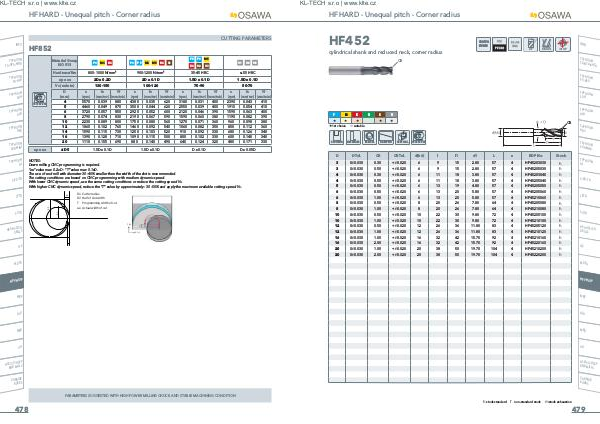

HF HARD - Unequal pitch - Corner radius
HF452
OSAWA
NORM
INFO
cylindrical shank and reduced neck, corner radius
TYPHOO
N
TA-HTA-4
HTA
CR
TYPHOO
N
PU-HPU
TYPHOO
N
SUH
P
M
K
N
+
+
+
+ 1st choice , suitable
SLOTTING
SIDE MILLING
S H
+ +
TYPHOO
N
ALH
CR
TYPHOO
N
HRC
HELICAL
RAMPING
VERTICAL
TROCHOIDAL
TYPHOO
N
SUH MIN
I
D D Tol. CR CR Tol. d(h6) l l1 d1 L z EDP No. Stock
3 0/-0.030 0.30 +/-0.020 6 9 15 2.80 57 4 HF45203030 h
3 0/-0.030 0.50 +/-0.020 6 9 15 2.80 57 4 HF45205030 h
4 0/-0.030 0.30 +/-0.020 6 11 18 3.80 57 4 HF45203040 h
4 0/-0.030 0.50 +/-0.020 6 11 18 3.80 57 4 HF45205040 h
5 0/-0.030 0.50 +/-0.020 6 13 19 4.80 57 4 HF45205050 h
6 0/-0.030 0.50 +/-0.020 6 13 20 5.80 57 4 HF45205060 h
6 0/-0.030 1.00 +/-0.020 6 13 20 5.80 57 4 HF
