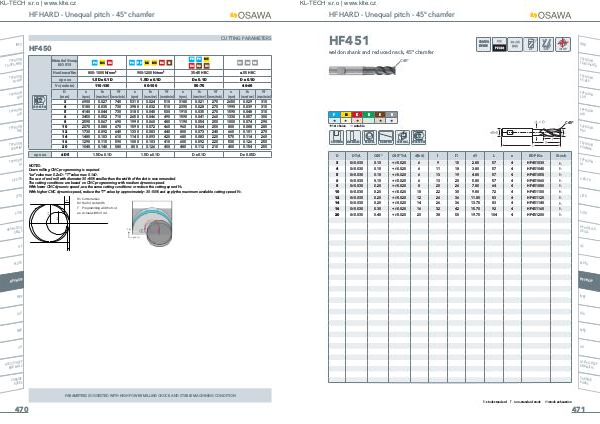

HF HARD - Unequal pitch - 45° chamfer
HF451
OSAWA
NORM
INFO
weldon shank and reduced neck, 45° chamfer
TYPHOO
N
TA-HTA-4
HTA
C45°
TYPHOO
N
PU-HPU
TYPHOO
N
SUH
P
M
K
N
+
+
+
+ 1st choice , suitable
SLOTTING
SIDE MILLING
S H
+ +
TYPHOO
N
ALH
C45°
TYPHOO
N
HRC
HELICAL
RAMPING
VERTICAL
TROCHOIDAL
TYPHOO
N
SUH MIN
I
D D Tol. C45° C45° Tol. d(h6) l l1 d1 L z EDP No. Stock
3 0/-0.030 0.10 +/-0.020 6 9 15 2.80 57 4 HF451030 h
4 0/-0.030 0.10 +/-0.020 6 11 18 3.80 57 4 HF451040 h
5 0/-0.030 0.10 +/-0.020 6 13 19 4.80 57 4 HF451050 h
6 0/-0.030 0.10 +/-0.020 6 13 20 5.80 57 4 HF451060 h
8 0/-0.030 0.20 +/-0.020 8 20 26 7.80 64 4 HF451080 h
10 0/-0.030 0.20 +/-0.020 10 22 30 9.80 72 4 HF451100 h
12 0/-0.030 0.20 +/-0.020 12 26 36 11.80 83 4 HF451120 h
h
14 0/-0.030 0.20 +/-0.020 14 26 36 13.70 83 4 HF451140 16 0/-0.030 0.30 +/-0.020 16 32 42 15.70 92 4 HF451160 h
20 0/-0.030 0.40 +/-0.020 20 38 50 19.70 104 4 HF451200 h
TYPHOO
N
HL
C-SD-TA
LFTA
SUTA
HSS-HSS
/CO
DRILLS
G2
MDTA
HF VH/U
P
MEF
ALU
MEX
UH
HSS/CO
-HSSP
END MIL
LS
CARBIDE
BURRS
h stock standard
f non-standard stock
m stock exhaustion
