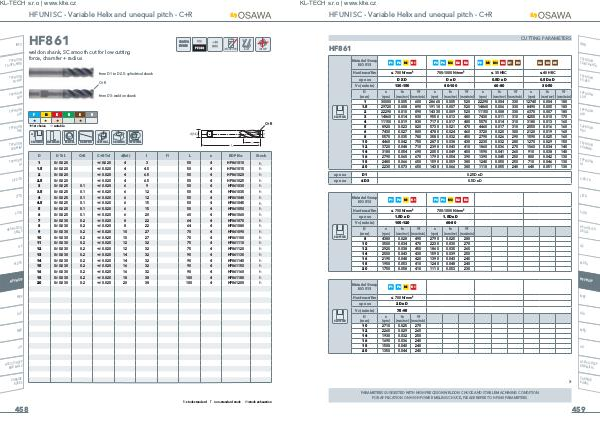

HF UNI SC - Variable Helix and unequal pitch - C+R
INFO
N
TYPHOO
HTA
TA-HTA-4
HF861
OSAWA
NORM
weldon shank, SC smooth cut for low cutting
force, chamfer + radius
from D1 to D2.5: cylindrical shank
N
TYPHOO
PU-HPU
C+R
N
TYPHOO
SUH
from D3: weldon shank
N
TYPHOO
ALH
P M K
+ + +
N
TYPHOO
HRC + 1st choice
N
TYPHOO
I
SUH MIN SLOTTING
N
TYPHOO
HL
C-SD-TA
LFTA
SUTA
/CO
HSS-HSS
DRILLS
G2
MDTA
P
HF VH/U
N
S
H
+
C+R
, suitable
2D
SIDE MILLING
HELICAL
RAMPING
C+R
VERTICAL
DRILLING
TROCHOIDAL
D D Tol. C+R Tol d(h6) l L z EDP No. Stock
1 0/-0.020 +/-0.020 4 3
l1
50 4 HF861010 h
1.5 0/-0.020 +/-0.020 4 4.5 50 4 HF861015 h
2 0/-0.020 +/-0.020 4 6.5 50 4 HF861020 h
2.5 0/-0.020 +/-0.020 4 6.5 50 4 HF861025 h
3 0/-0.025 0.1 +/-0.020 6 9 50 4 HF861030 h
3.5 0/-0.025 0.1 +/-0.020 6 12 50 4 HF861035 h
4 0/-0.025 0.1 +/-0.020 6 12 50 4 HF861040 h
4.5 0/-0.025 0.1 +/-0.020 6 15 50 4 HF861045 h
5 0/-0.025 0.1 +/-0.020 6 15 50 4 HF861050 h
6 0/-0.025 0.1 +/-0.020 6 20 60 4 HF861060 h
7 0/-0.030 0.2 +/-0.020 8 22 64 4 HF861070 h
8 0/-0.030 0.2 +/-0.020 8 22 64 4 HF861080 h
9 0/-0.030 0.2 +/-0.020 10 27 70 4 HF861090 h
10 0/-0.030 0.2 +/-0.020 10 27 70 4 HF861100 h
11 0/-0.030 0.2 +/-0.020 12 32 75 4 HF861110 h
12 0/-0.030 0.2 +/-0.020 12 32 75 4 HF861120 h
13 0/-0.030 0.2 +/-0.020 14 32 90 4 HF861130 h
14 0/-0.030 0.2 +/-0.020 14 32 90 4 HF861140 h
15 0/-0.030 0.2 +/-0.020 16 32 90 4 HF861150 h
16 0/-0.030 0.2 +/-0.020 16 32 90 4 HF861160 h
18 0/-0.030 0.2 +/-0.020 18 38 100 4 HF861180 h
20 0/-0.030 0.2 +/-0.020 20 38 100 4 HF861200 h
MEF
ALU
MEX
UH
-HSSP
HSS/CO LS
END MIL
CARBIDE
BURRS
h stock standard
458
f non-standard stock
m stock exhaustion
