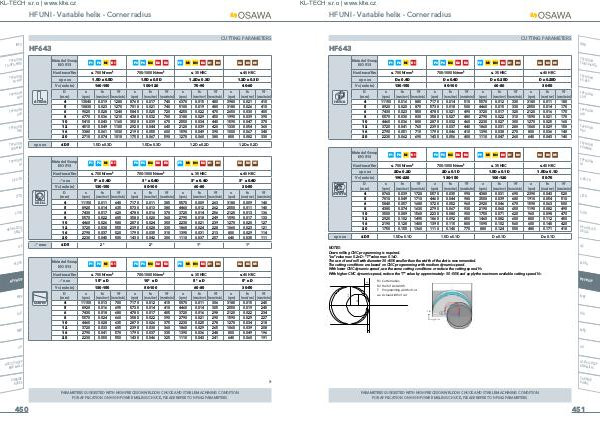

HF UNI- Variable helix- Corner radius

CUTTING PARAMETERS

HF643

INFO

Material Group ISO 513

P1 P2 M1 K1 P3 P4 M2 K2 K3 P5 M3 M4 K4 S1 S4 S2 S3 S5

TYPHOON TA-HTA-4HTA

VERTICAL

Hardness / Rm ≤ 700 N / mm ² 700-1000 N / mm ² ≤ 35 HRC ≤ 40 HRC ap x ae D x 0.4D D x 0.4D D x 0.25D D x 0.25D

Vc( m / min) 130-150 80-100 60-80 30-50

D( mm) n( rpm) fn( mm / rev)

Vf( mm / min) n( rpm) fn( mm / rev)

Vf( mm / min)

4	11150	0.016	880	7170	0.014	510	5570	0.012	330	3180	0.011	180
5	8920	0.020	870	5730	0.018	500	4460	0.015	330	2550	0.014	170
6	7430	0.023	850	4780	0.021	490	3720	0.017	320	2120	0.016	170
8	5570	0.030	830	3580	0.027	480	2790	0.022	310	1590	0.021	170
10	4460	0.036	800	2870	0.032	460	2230	0.027	300	1270	0.025	160
12	3720	0.041	760	2390	0.037	440	1860	0.031	280	1060	0.029	150
16	2790	0.051	710	1790	0.046	410	1390	0.038	270	800	0.036	140
20	2230	0.062	690	1430	0.056	400	1110	0.047	260	640	0.043	140

TYPHOON PU-HPU

TYPHOON SUH

TYPHOON ALH

TYPHOON HRC

TROCHOIDAL

Material Group ISO 513

P1 P2 M1 K1 P3 P4 M2 K2 K3 P5 M3 M4 K4 S1 S4 S2 S3 S5

Hardness / Rm ≤ 700 N / mm ² 700-1000 N / mm ² ≤ 35 HRC ≤ 40 HRC ap x ae 2D x 0.2D 2D x 0.1D 1.5D x 0.1D 1.5D x 0.1D

Vc( m / min) 190-230 130-150 100-120 50-70

D( mm) n( rpm) fn( mm / rev)

Vf( mm / min) n( rpm) fn( mm / rev)

Vf( mm / min)

4	8760	0.039	1720	5570	0.035	990	4380	0.031	690	2390	0.043	520
5	7010	0.049	1710	4460	0.044	980	3500	0.039	680	1910	0.054	510
6	5840	0.057	1680	3720	0.052	960	2920	0.046	670	1590	0.063	500
8	4380	0.074	1630	2790	0.067	930	2190	0.060	650	1190	0.082	490
10	3500	0.089	1560	2230	0.080	900	1750	0.071	620	960	0.098	470
12	2920	0.102	1490	1860	0.092	850	1460	0.082	600	800	0.112	450
16	2190	0.128	1400	1390	0.115	800	1090	0.102	560	600	0.140	420
20	1750	0.155	1360	1110	0.140	770	880	0.124	550	480	0.171	410

ap x ae ≤ D5 1.5D x 0.1D 1.5D x 0.1D D x 0.1D D x 0.1D

NOTES: Down milling CNC programming is required.“ ae” value max 0.2xD-“ T” value max 0.1xD. The use of end mill with diameter 30-40 % smaller than the width of the slot is recommended. The cutting conditions are based on CNC programming with medium dynamic speed. With lower CNC dynamic speed, use the same cutting conditions or reduce the cutting speed Vc. With higher CNC dynamic speed, reduce the“ T” value by approximately-30-50 % and apply the maximum available cutting speed Vc.

TYPHOON SUH MINI

TYPHOON HL

C-SD-TA

LFTA

SUTA

HSS-HSS / CO DRILLS

MDTA

R1 Cutter radius R2 Half of slot width T Programming width of cut ae Actual width of cut

HF VH / UP

MEF

Y(+) Y

ALU

X(+)

MEX

HSS / CO-HSSP END MILLS

CARBIDE BURRS

PARAMETERS SUGGESTED WITH HIGH PRECISION WELDON CHUCK AND STABLE MACHINING CONDITION. FOR APPLICATION ON HIGH POWER MILLING CHUCK, PLEASE REFER TO HF642 PARAMETERS.

451
