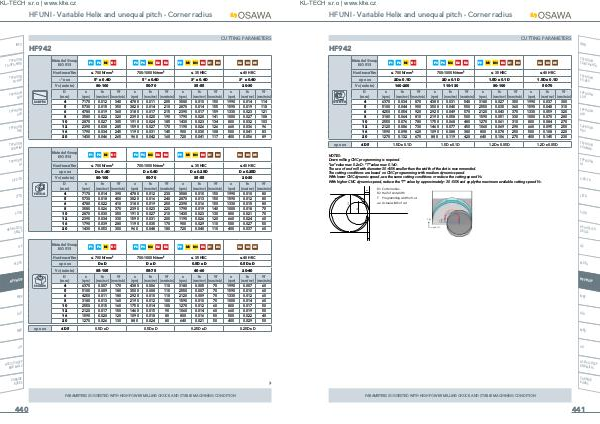

HF UNI- Variable Helix and unequal pitch- Corner radius

CUTTING PARAMETERS

HF942

INFO

Material Group ISO 513

P1 P2 M1 K1 P3 P4 M2 K2 K3 P5 M3 M4 K4 S1 S4 S2 S3 S5

TYPHOON TA-HTA-4HTA

TROCHOIDAL

Hardness / Rm ≤ 700 N / mm ² 700-1000 N / mm ² ≤ 35 HRC ≤ 40 HRC ap x ae 2D x 0.1D 2D x 0.1D 1.5D x 0.1D 1.5D x 0.1D

Vc( m / min) 160-200 110-130 80-100 50-70

D( mm) n( rpm) fn( mm / rev)

Vf( mm / min) n( rpm) fn( mm / rev)

Vf( mm / min)

4	6370	0.034	870	4380	0.031	540	3180	0.027	350	1990	0.037	300
5	5100	0.044	900	3500	0.040	550	2550	0.035	360	1590	0.048	310
6	4250	0.054	920	2920	0.049	570	2120	0.043	370	1330	0.059	320
8	3180	0.064	810	2190	0.058	500	1590	0.051	330	1000	0.070	280
10	2550	0.076	780	1750	0.068	480	1270	0.061	310	800	0.084	270
12	2120	0.086	730	1460	0.077	450	1060	0.069	290	660	0.095	250
16	1590	0.098	620	1090	0.088	380	800	0.078	250	500	0.108	220
20	1270	0.132	670	880	0.119	420	640	0.106	270	400	0.145	230

TYPHOON PU-HPU

TYPHOON SUH

TYPHOON ALH

TYPHOON HRC ap x ae ≤ D5 1.5D x 0.1D 1.5D x 0.1D 1.2D x 0.05D 1.2D x 0.05D

NOTES: Down milling CNC programming is required.“ ae” value max 0.2xD-“ T” value max 0.1xD. The use of end mill with diameter 30-40 % smaller than the width of the slot is recommended. The cutting conditions are based on CNC programming with medium dynamic speed. With lower CNC dynamic speed, use the same cutting conditions or reduce the cutting speed Vc. With higher CNC dynamic speed, reduce the“ T” value by approximately-30-50 % and apply the maximum available cutting speed Vc.

TYPHOON SUH MINI

TYPHOON HL

C-SD-TA

R1 Cutter radius R2 Half of slot width T Programming width of cut ae Actual width of cut

LFTA

SUTA

Y(+)

X(+)

HSS-HSS / CO DRILLS

MDTA

HF VH / UP

MEF

ALU

MEX

HSS / CO-HSSP END MILLS

CARBIDE BURRS

PARAMETERS SUGGESTED WITH HIGH POWER MILLING CHUCK AND STABLE MACHINING CONDITION

441
