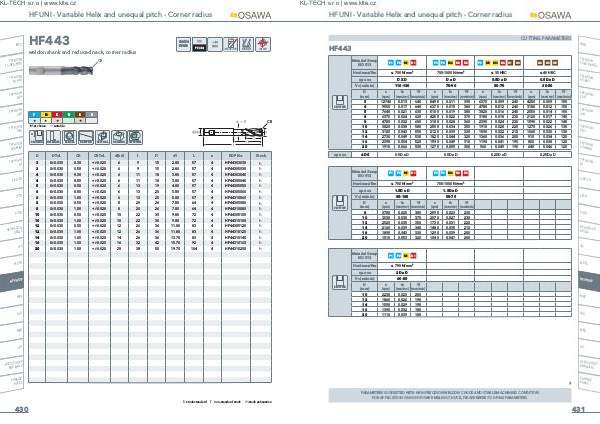

HF UNI - Variable Helix and unequal pitch - Corner radius
INFO
HF443
OSAWA
NORM
weldon shank and reduced neck, corner radius
N
TYPHOO
HTA
TA-HTA-4
CR
N
TYPHOO
PU-HPU
N
TYPHOO
SUH
N
TYPHOO
ALH
P M K
+ + +
N
TYPHOO
HRC + 1st choice
N
TYPHOO
I
SUH MIN SLOTTING
N
TYPHOO
HL
C-SD-TA
LFTA
SUTA
/CO
HSS-HSS
DRILLS
G2
N
S
H
+
CR
, suitable
2D
SIDE MILLING
HELICAL
RAMPING
VERTICAL
DRILLING
TROCHOIDAL
D D Tol. CR CR Tol. d(h6) l l1 d1 L z EDP No. Stock
3 0/-0.030 0.30 +/-0.020 6 9 15 2.80 57 4 HF44303030 h
3 0/-0.030 0.50 +/-0.020 6 9 15 2.80 57 4 HF44305030 h
4 0/-0.030 0.30 +/-0.020 6 11 18 3.80 57 4 HF44303040 h
4 0/-0.030 0.50 +/-0.020 6 11 18 3.80 57 4 HF44305040 h
5 0/-0.030 0.50 +/-0.020 6 13 19 4.80 57 4 HF44305050 h
6 0/-0.030 0.50 +/-0.020 6 13 20 5.80 57 4 HF44305060 h
6 0/-0.030 1.00 +/-0.020 6 13 20 5.80 57 4 HF44310060 h
8 0/-0.030 0.50 +/-0.020 8 20 26 7.80 64 4 HF44305080 h
8 0/-0.030 1.00 +/-0.020 8 20 26 7.80 64 4 HF44310080 h
10 0/-0.030 0.50 +/-0.020 10 22 30 9.80 72 4 HF44305100 h
10 0/-0.030 1.00 +/-0.020 10 22 30 9.80 72 4 HF44310100 h
12 0/-0.030 0.50 +/-0.020 12 26 36 11.80 83 4 HF44305120 h
12 0/-0.030 1.00 +/-0.020 12 26 36 11.80 83 4 HF44310120 h
14 0/-0.030 1.00 +/-0.020 14 26 36 13.70 83 4 HF44310140 h
16 0/-0.030 1.00 +/-0.020 16 32 42 15.70 92 4 HF44310160 h
20 0/-0.030 1.00 +/-0.020 20 38 50 19.70 104 4 HF44310200 h
MDTA
P
HF VH/U
MEF
ALU
MEX
UH
-HSSP
HSS/CO LS
END MIL
CARBIDE
BURRS
h stock standard
430
f non-standard stock
m stock exhaustion
