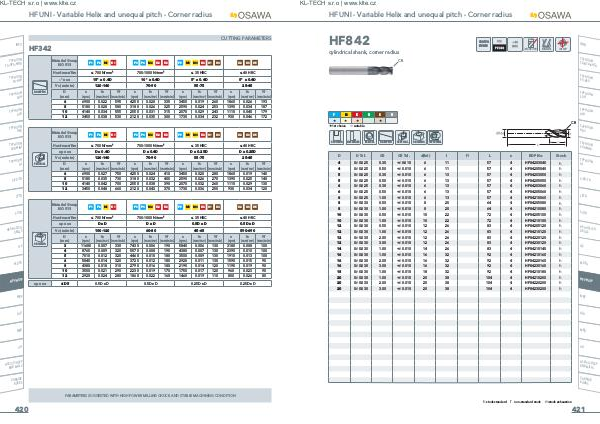

HF UNI - Variable Helix and unequal pitch - Corner radius
HF842
OSAWA
NORM
INFO
cylindrical shank, corner radius
TYPHOO
N
TA-HTA-4
HTA
CR
TYPHOO
N
PU-HPU
TYPHOO
N
SUH
P
M
K
N
+
+
+
+ 1st choice , suitable
SLOTTING
SIDE MILLING
S
TYPHOO
N
ALH
H
+
HELICAL
RAMPING
CR
VERTICAL
DRILLING
TROCHOIDAL
TYPHOO
N
HRC
TYPHOO
N
SUH MIN
I
D D Tol. CR CR Tol. d(h6) l L z EDP No. Stock
4 0/-0.025 0.30 +/-0.010 6 11
l1
57 4 HF84203040 h
4 0/-0.025 0.50 +/-0.010 6 11 57 4 HF84205040 h
5 0/-0.025 0.30 +/-0.010 6 13 57 4 HF84203050 h
5 0/-0.025 0.50 +/-0.010 6 13 57 4 HF84205050 h
6 0/-0.025 0.30 +/-0.010 6 13 57 4 HF84203060 h
6 0/-0.025 0.50 +/-0.010 6 13 57 4 HF84205060 h
6 0/-0.025 1.00 +/-0.010 6 13 57 4 HF84210060 h
8 0/-0.030 0.50 +/-0.010 8 20 64 4 HF84205080 h
8 0/-0.030 1.00 +/-0.010 8 20 64 4 HF84210080 h
10 0/-0.030 0.50 +/-0.010 10 22 72 4 HF84205100 h
10 0/-0.030 1.00 +/-0.010 10 22 72 4 HF84210100 h
12 0/-0.030 0.50 +/-0.010 12 26 83 4 HF84205120 h
12 0/-0.030 1.00 +/-0.010 12 26 83 4 HF84210120 h
12 0/-0.030 2.00 +/-0.010 12 26 83 4 HF84220120 h
12 0/-0.030 3.00 +/-0.010 12 26 83 4 HF84230120 h
14 0/-0.030 1.00 +/-0.010 14 26 83 4 HF84210140 h
16 0/-0.030 1.00 +/-0.010 16 32 92 4 HF84210160 h
16 0/-0.030 2.00 +/-0.010 16 32 92 4 HF84220160 h
16 0/-0.030 3.00 +/-0.010 16 32 92 4 HF84230160 h
18 0/-0.030 1.00 +/-0.010 18 32 92 4 HF84210180 h
20 0/-0.030 1.00 +/-0.010 20 38 104 4 HF84210200 h
20 0/-0.030 2.00 +/-0.010 20 38 104 4 HF84220200 h
20 0/-0.030 3.00 +/-0.010 20 38 104 4 HF84230200 h
