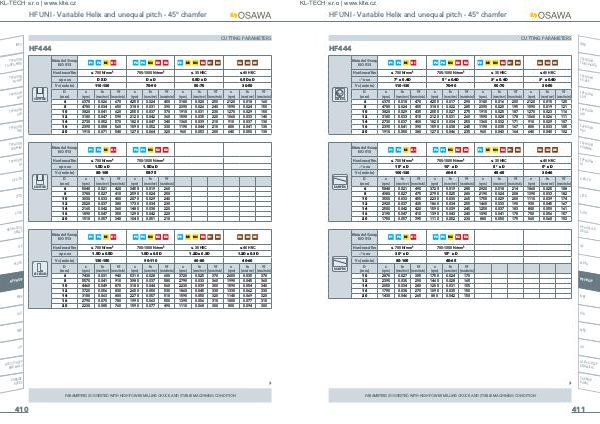

HF UNI- Variable Helix and unequal pitch- 45 ° chamfer

INFO

HF444

CUTTING PARAMETERS

TYPHOON TA-HTA-4HTA

Material Group ISO 513

P1 P2 M1 K1 P3 P4 M2 K2 K3 P5 M3 M4 K4 S1 S4 S2 S3 S5

TYPHOON PU-HPU

TYPHOON SUH

TYPHOON ALH

TYPHOON HRC

SLOTTING

Hardness / Rm ≤ 700 N / mm ² 700-1000 N / mm ² ≤ 35 HRC ≤ 40 HRC ap x ae D X D D x D 0.5D x D 0.5D x D

Vc( m / min) 110-130 70-90 50-70 30-50

D( mm) n( rpm) fn( mm / rev)

Vf( mm / min) n( rpm) fn( mm / rev)

Vf( mm / min)

6	6370	0.026	670	4250	0.024	400	3180	0.020	250	2120	0.018	160
8	4780	0.034	650	3180	0.031	390	2390	0.026	240	1590	0.024	150
10	3820	0.041	620	2550	0.037	370	1910	0.031	230	1270	0.029	150
12	3180	0.047	590	2120	0.042	360	1590	0.035	220	1060	0.033	140
14	2730	0.052	570	1820	0.047	340	1360	0.039	210	910	0.037	130
16	2390	0.058	560	1590	0.052	330	1190	0.044	210	800	0.041	130
20	1910	0.071	540	1270	0.064	320	960	0.053	200	640	0.050	130

TYPHOON SUH MINI

Material Group ISO 513

P1 P2 M1 K1 P3 P4 M2 K2 K3

TYPHOON HL

C-SD-TA

LFTA

SUTA

SLOTTING

Hardness / Rm ≤ 700 N / mm ² 700-1000 N / mm ² ap x ae 1.5D x D 1.5D x D

Vc( m / min) 85-105 55-75

D( mm) n( rpm) fn( mm / rev)

Vf( mm / min) n( rpm) fn( mm / rev)

Vf( mm / min)

6	5040	0.021	420	3450	0.019	260
8	3780	0.027	410	2590	0.024	250
10	3030	0.033	400	2070	0.029	240
12	2520	0.037	380	1730	0.034	230
14	2160	0.042	360	1480	0.038	220
16	1890	0.047	350	1290	0.042	220
20	1510	0.057	340	1040	0.051	210

HSS-HSS / CO DRILLS

Material Group ISO 513

P1 P2 M1 K1 P3 P4 M2 K2 K3 P5 M3 M4 K4 S1 S4 S2 S3 S5

MDTA

HF VH / UP

MEF

ALU

SIDE MILLING

Hardness / Rm ≤ 700 N / mm ² 700-1000 N / mm ² ≤ 35 HRC ≤ 40 HRC ap x ae 1.5D x 0.5D 1.5D x 0.5D 1.2D x 0.3D 1.2D x 0.3D

Vc( m / min) 130-150 90-110 60-80 40-60

D( mm) n( rpm) fn( mm / rev)

Vf( mm / min) n( rpm) fn( mm / rev)

Vf( mm / min)

6	7430	0.031	940	5310	0.028	600	3720	0.025	370	2650	0.035	370
8	5570	0.041	910	3980	0.037	580	2790	0.033	360	1990	0.045	360
10	4460	0.049	870	3180	0.044	560	2230	0.039	350	1590	0.054	340
12	3720	0.056	830	2650	0.050	530	1860	0.045	330	1330	0.062	330
14	3180	0.063	800	2270	0.057	510	1590	0.050	320	1140	0.069	320
16	2790	0.070	780	1990	0.063	500	1390	0.056	310	1000	0.077	310
20	2230	0.085	760	1590	0.077	490	1110	0.068	300	800	0.094	300

MEX

HSS / CO-HSSP END MILLS

CARBIDE BURRS

PARAMETERS SUGGESTED WITH HIGH POWER MILLING CHUCK AND STABLE MACHINING CONDITION

410
