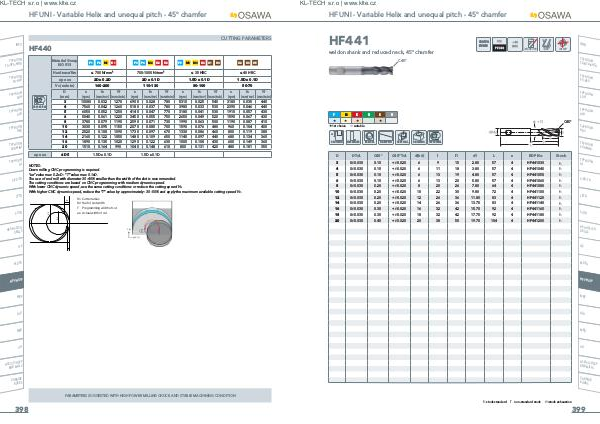

HF UNI - Variable Helix and unequal pitch - 45° chamfer
HF441
OSAWA
NORM
INFO
weldon shank and reduced neck, 45° chamfer
TYPHOO
N
TA-HTA-4
HTA
C45°
TYPHOO
N
PU-HPU
TYPHOO
N
SUH
P
M
K
N
S
+
+
+
+ 1st choice , suitable
TYPHOO
N
ALH
H
+
C45°
TYPHOO
N
HRC
2D
SLOTTING
SIDE MILLING
HELICAL
RAMPING
VERTICAL
DRILLING
TROCHOIDAL
TYPHOO
N
SUH MIN
I
D D Tol. C45° C45° Tol. d(h6) l l1 d1 L z EDP No. Stock
3 0/-0.030 0.10 +/-0.020 6 9 15 2.80 57 4 HF441030 h
4 0/-0.030 0.10 +/-0.020 6 11 18 3.80 57 4 HF441040 h
5 0/-0.030 0.10 +/-0.020 6 13 19 4.80 57 4 HF441050 h
6 0/-0.030 0.10 +/-0.020 6 13 20 5.80 57 4 HF441060 h
8 0/-0.030 0.20 +/-0.020 8 20 26 7.80 64 4 HF441080 h
10 0/-0.030 0.20 +/-0.020 10 22 30 9.80 72 4 HF441100 h
12 0/-0.030 0.20 +/-0.020 12 26 36 11.80 83 4 HF441120 h
h
14 0/-0.030 0.20 +/
