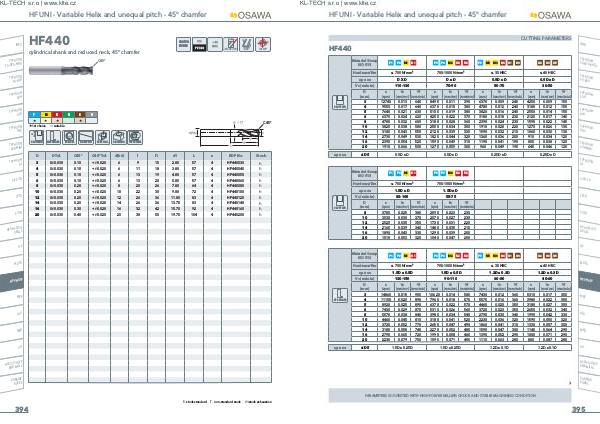

HF UNI- Variable Helix and unequal pitch- 45 ° chamfer
INFO
TYPHOON TA-HTA-4HTA

HF440 cylindrical shank and reduced neck, 45 ° chamfer

C45 °
OSAWA NORM
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON ALH
TYPHOON HRC
P
M
K
N
S
H
�
�
�
�
� 1st choice
� suitable
1.5D
C45 °
TYPHOON SUH MINI
SLOTTING SIDE MILLING HELICAL RAMPING VERTICAL DRILLING TROCHOIDAL
TYPHOON HL
C-SD-TA
LFTA
SUTA
D
D Tol.
C45 °
C45 ° Tol.
d( h6)
l
l1
d1
L
z
EDP No.
Stock
3
0 /-0.030
0.10
+/-0.020
6
9
15
2.80
57
4
HF440030
h
4
0 /-0.030
0.10
+/-0.020
6
11
18
3.80
57
4
HF440040
h
5
0 /-0.030
0.10
+/-0.020
6
13
19
4.80
57
4
HF440050
h
6
0 /-0.030
0.10
+/-0.020
6
13
20
5.80
57
4
HF440060
h
8
0 /-0.030
0.20
+/-0.020
8
20
26
7.80
64
4
HF440080
h
10
0 /-0.030
0.20
+/-0.020
10
22
30
9.80
72
4
HF440100
h
12
0 /-0.030
0.20
+/-0.020
12
26
36
11.80
83
4
HF440120
h
14
0 /-0.030
0.20
+/-0.020
14
26
36
13.70
83
4
HF440140
h
16
0 /-0.030
0.30
+/-0.020
16
32
42
15.70
92
4
HF440160
h
20
0 /-0.030
0.40
+/-0.020
20
38
50
19.70
104
4
HF440200
h
HSS-HSS / CO DRILLS
G2
MDTA
HF VH / UP
MEF
ALU
MEX
UH
HSS / CO-HSSP END MILLS
CARBIDE BURRS
