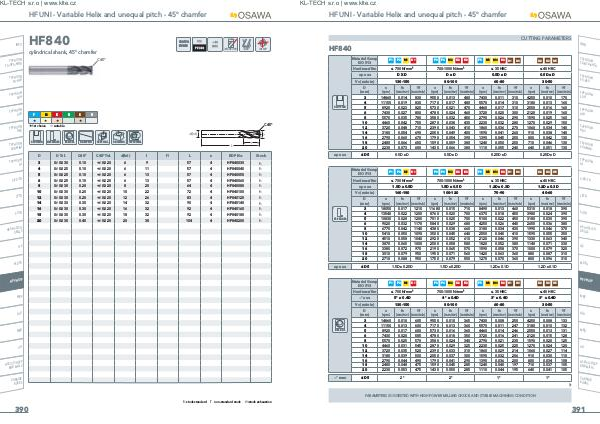

HF UNI - Variable Helix and unequal pitch - 45° chamfer
INFO
HF840
OSAWA
NORM
cylindrical shank, 45° chamfer
N
TYPHOO
HTA
TA-HTA-4
C45°
N
TYPHOO
PU-HPU
N
TYPHOO
SUH
N
TYPHOO
ALH
P M K
+ + +
N
TYPHOO
HRC + 1st choice
N
TYPHOO
I
SUH MIN SLOTTING
N
TYPHOO
HL
C-SD-TA
LFTA
SUTA
N
S
H
+
C45°
, suitable
SIDE MILLING
HELICAL
RAMPING
VERTICAL
DRILLING
TROCHOIDAL
D D Tol. C45° C45° Tol. d(h6) l L z EDP No. Stock
3 0/-0.030 0.10 +/-0.020 6 9
l1
57 4 HF840030 h
4 0/-0.025 0.10 +/-0.020 6 11 57 4 HF840040 h
5 0/-0.025 0.10 +/-0.020 6 13 57 4 HF840050 h
6 0/-0.025 0.10 +/-0.020 6 13 57 4 HF840060 h
8 0/-0.030 0.20 +/-0.020 8 20 64 4 HF840080 h
10 0/-0.030 0.20 +/-0.020 10 22 72 4 HF840100 h
12 0/-0.030 0.20 +/-0.020 12 26 83 4 HF840120 h
14 0/-0.030 0.30 +/-0.020 14 32 90 4 HF840140 h
16 0/-0.030 0.30 +/-0.020 16 32 92 4 HF840160 h
18 0/-0.030 0.30 +/-0.020 18 32 92 4 HF840180 h
20 0/-0.030 0.40 +/-0.020 20 38 104 4 HF840200 h
/CO
HSS-HSS
DRILLS
G2
MDTA
P
HF VH/U
MEF
ALU
MEX
UH
-HSSP
HSS/CO LS
END MIL
CARBIDE
BURRS
h stock standard
390
f non-standard stock
m stock exhaustion
