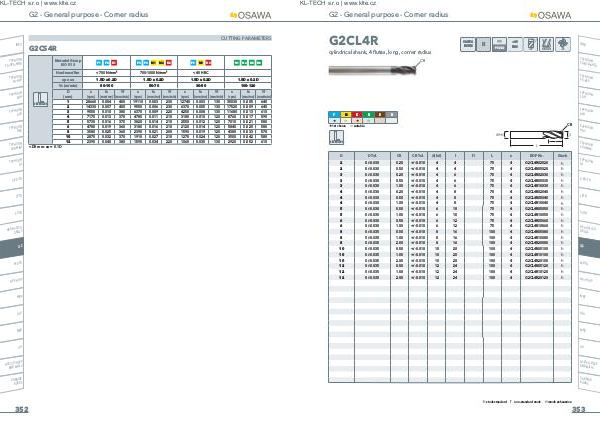

G2 - General purpose - Corner radius
G2CL4R
OSAWA
NORM
<45
HRC
INFO
cylindrical shank, 4 flutes, long, corner radius
TYPHOO
N
TA-HTA-4
HTA
CR
TYPHOO
N
PU-HPU
TYPHOO
N
SUH
P
M
K
N
S
TYPHOO
N
ALH
H
+
,
+
,
+ 1st choice , suitable
CR
SIDE MILLING
TYPHOO
N
HRC
TYPHOO
N
SUH MIN
I
D D Tol. CR CR Tol. d(h6) l L z EDP No. Stock
2 0/-0.030 0.20 +/-0.010 4 4
l1
75 4 G2CL4R02020 h
2 0/-0.030 0.50 +/-0.010 4 4 75 4 G2CL4R05020 h
3 0/-0.030 0.20 +/-0.010 4 6 75 4 G2CL4R02030 h
3 0/-0.030 0.50 +/-0.010 4 6 75 4 G2CL4R05030 h
3 0/-0.030 1.00 +/-0.010 4 6 75 4 G2CL4R10030 h
4 0/-0.030 0.20 +/-0.010 4 8 75 4 G2CL4R02040 h
4 0/-0.030 0.50 +/-0.010 4 8 75 4 G2CL4R05040 h
4 0/-0.030 1.00 +/-0.010 4 8 75 4 G2CL4R10040 h
5 0/-0.030 0.50 +/-0.010 6 10 75 4 G2CL4R05050 h
5 0/-0.030 1.00 +/-0.010 6 10 75 4 G2CL4R10050 h
6 0/-0.030 0.50 +/-0.010 6 12 75 4 G2CL4R05060 h
6 0/-0.030 1.00 +/-0.010 6 12 75 4 G2CL4R10060 h
8 0/-0.035 0.50 +/-0.010 8 16 100 4 G2CL4R05080 h
8 0/-0.035 1.00 +/-0.010 8 16 100 4 G2CL4R10080 h
8 0/-0.035 2.00 +/-0.010 8 16 100 4 G2CL4R20080 h
10 0/-0.035 0.50 +/-0.010 10 20 100 4 G2CL4R05100 h
10 0/-0.035 1.00 +/-0.010 10 20 100 4 G2CL4R10100 h
10 0/-0.035 2.00 +/-0.010 10 20 100 4 G2CL4R20100 h
12 0/-0.035 0.50 +/-0.010 12 24 100 4 G2CL4R05120 h
12 0/-0.035 1.00 +/-0.010 12 24 100 4 G2CL4R10120 h
12 0/-0.035 2.00 +/-0.010 12 24 100 4 G2CL4R20120 h
