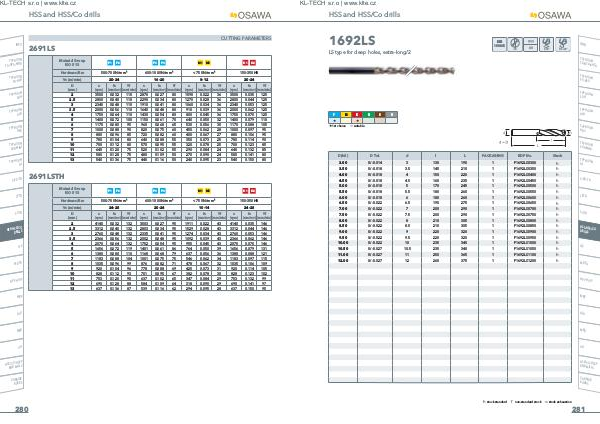

HSS and HSS/Co drills
1692LS
DIN
1869/2
INFO
LS type for deep holes, extra-long/2
TYPHOO
N
TA-HTA-4
HTA
TYPHOO
N
PU-HPU
TYPHOO
N
SUH
P
M
+
+ 1st choice
K
N
S
TYPHOO
N
ALH
H
+
, suitable
TYPHOO
N
HRC
TYPHOO
N
SUH MIN
I
D(h8) D Tol. d l L PACKAGING EDP No. Stock
3.00 0/-0.014 3 130 190 1 P1692LS0300 h
3.50 0/-0.018 3.5 145 210 1 P1692LS0350 h
4.00 0/-0.018 4 150 220 1 P1692LS0400 h
4.50 0/-0.018 4.5 160 235 1 P1692LS0450 h
5.00 0/-0.018 5 170 245 1 P1692LS0500 h
5.50 0/-0.018 5.5 180 260 1 P1692LS0550 h
6.00 0/-0.018 6 180 260 1 P1692LS0600 h
6.50 0/-0.022 6.5 190 275 1 P1692LS0650 h
7.00 0/-0.022 7 200 290 1 P1692LS0700 h
7.50 0/-0.022 7.5 200 290 1 P1692LS0750 h
8.00 0/-0.022 8 210 305 1 P1692LS0800 h
8.50 0/-0.022 8.5 210 305 1 P1692LS0850 h
9.00 0/-0.022 9 220 320 1 P1692LS0900 h
9.50 0/-0.022 9.5 220 320 1 P1692LS0950 h
10.00 0/-0.022 10 235 340 1 P1692LS1000 h
10.50 0/-0.027 10.5 235 340 1 P1692LS1050 h
11.00 0/-0.027 11 250 365 1 P1692LS1100 h
12.00 0/-0.027 12 260 375 1 P1692LS1200 h
TYPHOO
N
HL
C-SD-TA
LFTA
SUTA
HSS-HSS
/CO
DRILLS
G2
MDTA
HF VH/U
P
MEF
ALU
MEX
UH
HSS/CO
-HSSP
END MIL
LS
CARBIDE
BURRS
h stock standard
f non-standard stock
m stock exhaustion
