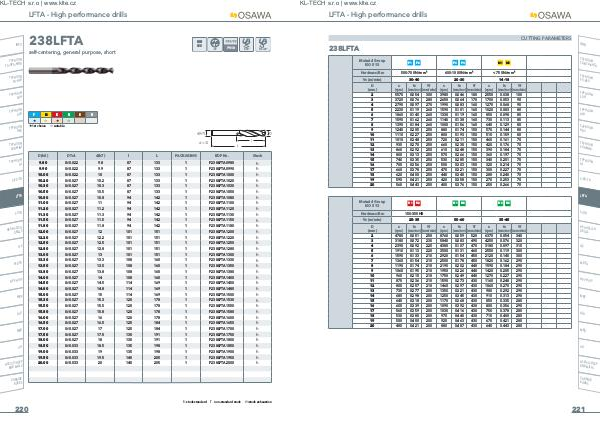

LFTA - High performance drills
INFO
238LFTA
DIN
338
self-centering, general purpose, short
N
TYPHOO
HTA
TA-HTA-4
N
TYPHOO
PU-HPU
N
TYPHOO
SUH
N
TYPHOO
ALH
N
TYPHOO
HRC
P M K N
+ , + ,
+ 1st choice
S
H
, suitable
N
TYPHOO
I
SUH MIN
N
TYPHOO
HL
C-SD-TA
LFTA
SUTA
/CO
HSS-HSS
DRILLS
G2
MDTA
P
HF VH/U
MEF
ALU
MEX
UH
-HSSP
HSS/CO LS
END MIL
D(h8) D Tol. d(h7) l L PACKAGING EDP No. Stock
9.80 0/-0.022 9.8 87 133 1 P238LFTA0980 h
9.90 0/-0.022 9.9 87 133 1 P238LFTA0990 h
10.00 0/-0.022 10 87 133 1 P238LFTA1000 h
10.20 0/-0.027 10.2 87 133 1 P238LFTA1020 h
10.30 0/-0.027 10.3 87 133 1 P238LFTA1030 h
10.50 0/-0.027 10.5 87 133 1 P238LFTA1050 h
10.80 0/-0.027 10.8 94 142 1 P238LFTA1080 h
11.00 0/-0.027 11 94 142 1 P238LFTA1100 h
11.20 0/-0.027 11.2 94 142 1 P238LFTA1120 h
11.30 0/-0.027 11.3 94 142 1 P238LFTA1130 h
11.50 0/-0.027 11.5 94 142 1 P238LFTA1150 h
11.80 0/-0.027 11.8 94 142 1 P238LFTA1180 h
12.00 0/-0.027 12 101 151 1 P238LFTA1200 h
12.20 0/-0.027 12.2 101 151 1 P238LFTA1220 h
12.50 0/-0.027 12.5 101 151 1 P238LFTA1250 h
12.80 0/-0.027 12.8 101 151 1 P238LFTA1280 h
13.00 0/-0.027 13 101 151 1 P238LFTA1300 h
13.30 0/-0.027 13.3 108 160 1 P238LFTA1330 h
13.50 0/-0.027 13.5 108 160 1 P238LFTA1350 h
13.80 0/-0.027 13.8 108 160 1 P238LFTA1380 h
14.00 0/-0.027 14 108 160 1 P238LFTA1400 h
14.50 0/-0.027 14.5 114 169 1 P238LFTA1450 h
14.80 0/-0.027 14.8 114 169 1 P238LFTA1480 h
15.00 0/-0.027 15 114 169 1 P238LFTA1500 h
15.30 0/-0.027 15.3 120 178 1 P238LFTA1530 h
15.50 0/-0.027 15.5 120 178 1 P238LFTA1550 h
15.80 0/-0.027 15.8 120 178 1 P238LFTA1580 h
16.00 0/-0.027 16 120 178 1 P238LFTA1600 h
16.50 0/-0.027 16.5 125 184 1 P238LFTA1650 h
17.00 0/-0.027 17 125 184 1 P238LFTA1700 h
17.50 0/-0.027 17.5 130 191 1 P238LFTA1750 h
18.00 0/-0.027 18 130 191 1 P238LFTA1800 h
18.50 0/-0.033 18.5 135 198 1 P238LFTA1850 h
19.00 0/-0.033 19 135 198 1 P238LFTA1900 h
19.50 0/-0.033 19.5 140 205 1 P238LFTA1950 h
20.00 0/-0.033 20 140 205 1 P238LFTA2000 h
CARBIDE
BURRS
h stock standard
