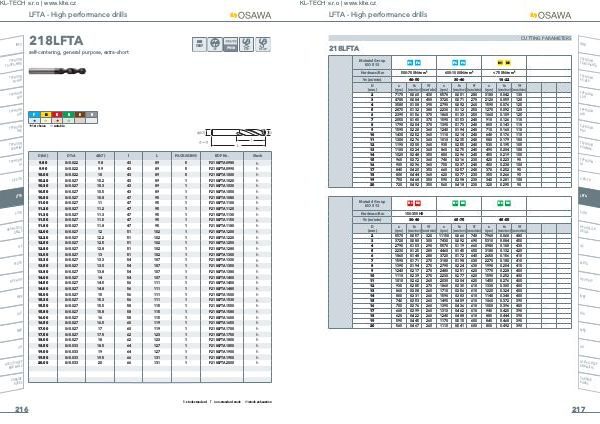

OSAWA - katalog | KL-TECH s.r.o. | www.klte.cz | Page 218

KL-TECH s.r.o | www.klte.cz
LFTA - High performance drills
INFO
218LFTA
DIN
1897
self-centering, general purpose, extra-short
N
TYPHOO
HTA
TA-HTA-4
N
TYPHOO
PU-HPU
N
TYPHOO
SUH
N
TYPHOO
ALH
N
TYPHOO
HRC
P M K N
+ , + ,
+ 1st choice
S
H
, suitable
N
TYPHOO
I
SUH MIN
N
TYPHOO
HL
C-SD-TA
LFTA
D(h8) D Tol. d(h7) l L PACKAGING EDP No. 9.80 0/-0.022 9.8 43 89 5 P218LFTA0980
Stock
h
9.90 0/-0.022 9.9 43 89 5 P218LFTA0990 h
10.00 0/-0.022 10 43 89 5 P218LFTA1000 h
10.20 0/-0.027 10.2 43 89 1 P218LFTA1020 h
10.30 0/-0.027 10.3 43 89 1 P218LFTA1030 h
10.50 0/-0.027 10.5 43 89 1 P218LFTA1050 h
10.80 0/-0.027 10.8 47 95 1 P218LFTA1080 h
11.00 0/-0.027 11 47 95 1 P218LFTA1100 h
11.20 0/-0.027 11.2 47 95 1 P218LFTA1120 h
SUTA 11.30 0/-0.027 11.3 47 95 1 P218LFTA1130 h
11.50 0/-0.027 11.5 47 95 1 P218LFTA1150 h
/CO
HSS-HSS
DRILLS 11.80 0/-0.027 11.8 47 95 1 P218LFTA1180 h
G2
MDTA
P
HF VH/U
MEF
ALU
MEX
UH
-HSSP
HSS/CO LS
END MIL
12.00 0/-0.027 12 51 102 1 P218LFTA1200 h
12.20 0/-0.027 12.2 51 102 1 P218LFTA1220 h
12.50 0/-0.027 12.5 51 102 1 P218LFTA1250 h
12.80 0/-0.027 12.8 51 102 1 P218LFTA1280 h
13.00 0/-0.027 13 51 102 1 P218LFTA1300 h
13.30 0/-0.027 13.3 54 107 1 P218LFTA1330 h
13.50 0/-0.027 13.5 54 107 1 P218LFTA1350 h
13.80 0/-0.027 13.8 54 107 1 P218LFTA1380 h
14.00 0/-0.027 14 54 107 1 P218LFTA1400 h
14.50 0/-0.027 14.5 56 111 1 P218LFTA1450 h
14.80 0/-0.027 14.8 56 111 1 P218LFTA1480 h
15.00 0/-0.027 15 56 111 1 P218LFTA1500 h
15.30 0/-0.027 15.3 56 111 1 P218LFTA1530 h
15.50 0/-0.027 15.5 58 115 1 P218LFTA1550 h
15.80 0/-0.027 15.8 58 115 1 P218LFTA1580 h
16.00 0/-0.027 16 58 115 1 P218LFTA1600 h
16.50 0/-0.027 16.5 60 119 1 P218LFTA1650 h
17.00 0/-0.027 17 60 119 1 P218LFTA1700 h
17.50 0/-0.027 17.5 62 123 1 P218LFTA1750 h
18.00 0/-0.027 18 62 123 1 P218LFTA1800 h
h
18.50 0/-0.033 18.5 64 127 1 P218LFTA1850 19.00 0/-0.033 19 64 127 1 P218LFTA1900 h
19.50 0/-0.033 19.5 66 131 1 P218LFTA1950 h
20.00 0/-0.033 20 66 131 1 P218LFTA2000 h
