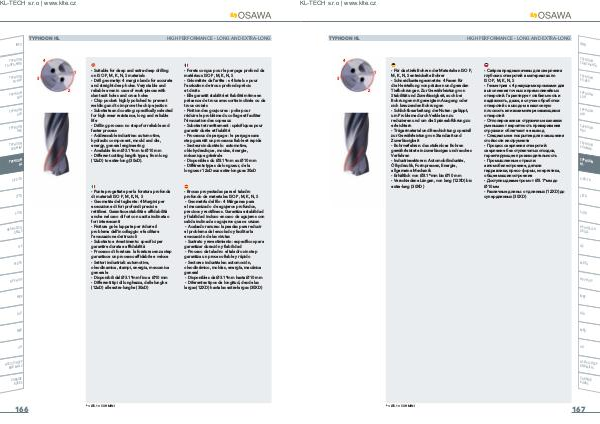

TYPHOON HL HIGH PERFORMANCE- LONG AND EXTRA-LONG
TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON ALH
TYPHOON HRC
TYPHOON SUH MINI
TYPHOON HL
3
4
2
1
- Suitable for deep and extra-deep drilling on ISO P, M, K, N, S materials- Drill geometry: 4 margin lands for accurate and straight deep holes. Very stable and reliable even in case of work-pieces with slant exit holes and cross holes- Chip pocket: highly polished to prevent welding and to improve the chip ejection- Substrate and coating: specifically selected for high wear resistance, long and reliable life- Drilling process: no steps for reliable and faster process- Addressable industries: automotive, hydraulic component, mould and die, energy, general engineering- Available from Ø3.1 * mm to Ø10 mm- Different cutting length types, from long( 12xD) to extra-long( 30xD).
- Forets conçus pour le perçage profond de matériaux ISO P, M, K, N, S- Géométrie de l’ arête: « 4 listels » pour l’ exécution de trous profonds précis et droits- Elle garantit stabilité et fiabilité même en présence de trous avec sortie inclinée ou de trous croisés- Finition des goujoures: polie pour réduire le problème du collage et faciliter l’ évacuation des copeaux- Substrat et revêtement: spécifiques pour garantir durée et fiabilité- Processus de perçage: le perçage sans step garantit un processus fiable et rapide- Secteurs industriels: automotive, oléohydraulique, moules, énergie, mécanique générale- Disponibles du Ø3.1 * mm au Ø10 mm- Différents types de longueur, de la longueur 12xD aux extra-longues 30xD
C-SD-TA
LFTA
SUTA
HSS-HSS / CO DRILLS
G2
MDTA
HF VH / UP
- Punte progettate per la foratura profonda di materiali ISO P, M, K, N, S- Geometria del tagliente: 4 Margini per esecuzione di fori profondi precisi e rettilinei. Garantisce stabilità e affidabilità anche nel caso di fori con uscita inclinata o fori intersecanti- Finitura gole: lappate per ridurre il problema dell’ incollaggio e facilitare l’ evacuazione dei trucioli- Substrato e rivestimento: specifici per garantire durata e affidabilità- Processo di foratura: la foratura senza step garantisce un processo affidabile e veloce- Settori industriali: automotive, oleodinamica, stampi, energia, meccanica generale- Disponibili dal Ø3.1 * mm fino a Ø10 mm- Differenti tipi di lunghezza, dalle lunghe( 12xD) alle extra-lunghe( 30xD)
- Brocas proyectadas para el taladro profundo de materiales ISO P, M, K, N, S- Geometría del filo: 4 Márgenes para el mecanizado de agujeros profundos, precisos y rectilíneos. Garantiza estabilidad y fiabilidad incluso en caso de agujeros con salida inclinada o agujeros que se cruzan- Acabado ranuras: lapeadas para reducir el problema del encolado y facilitar la evacuación de las virutas- Sustrato y revestimiento: específicos para garantizar duración y fiabilidad- Proceso de taladro: el taladro sin step garantiza un proceso fiable y rápido- Sectores industriales: automoción, oleodinámico, moldes, energía, mecánica general- Disponibles de Ø3.1 * mm hasta Ø10 mm- Diferentes tipos de longitud, desde las largas( 12XD) hasta las extra-largas( 30XD)
MEF
ALU
MEX
UH
HSS / CO-HSSP END MILLS
CARBIDE BURRS
166
* < Ø3.1 = SUH MINI
