TYPHOON- high performance solid carbide drills

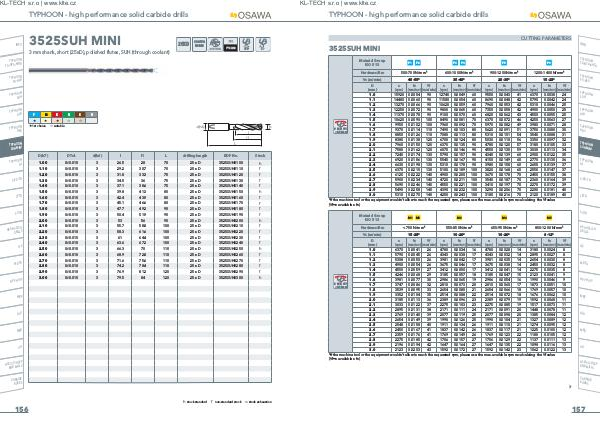

3525SUH MINI

CUTTING PARAMETERS

INFO

Material Group ISO 513

P1 P2 P3 P4 P5 P6

TYPHOON

TA-HTA-4HTA

Ø RUN OUT < 0.02mm

Hardness / Rm 500-700 N / mm ² 600-1000 N / mm ² 900-1200 N / mm ² 1200-1400 N / mm ² Vc( m / min) 45-55 * 35-45 * 25-35 * 15-25 *

D( mm) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min)

1.0	15920	0.0054	90	12740	0.0049	60	9550	0.0043	41	6370	0.0038	24
1.1	14480	0.0060	90	11580	0.0054	60	8690	0.0048	42	5790	0.0042	24
1.2	13270	0.0066	90	10620	0.0059	60	7960	0.0053	42	5310	0.0046	25
1.3	12250	0.0072	90	9800	0.0065	60	7350	0.0058	42	4900	0.0050	25
1.4	11370	0.0078	90	9100	0.0070	60	6820	0.0062	43	4550	0.0055	25
1.5	10620	0.0090	100	8490	0.0081	70	6370	0.0072	46	4250	0.0063	27
1.6	9950	0.0102	100	7960	0.0092	70	5970	0.0082	49	3980	0.0071	28
1.7	9370	0.0114	110	7490	0.0103	80	5620	0.0091	51	3750	0.0080	30
1.8	8850	0.0126	110	7080	0.0113	80	5310	0.0101	54	3540	0.0088	31
1.9	8380	0.0138	120	6700	0.0124	80	5030	0.0110	56	3350	0.0097	32
2.0	7960	0.0150	120	6370	0.0135	90	4780	0.0120	57	3180	0.0105	33
2.1	7580	0.0162	120	6070	0.0146	90	4550	0.0130	59	3030	0.0113	34
2.2	7240	0.0174	130	5790	0.0157	90	4340	0.0139	60	2900	0.0122	35
2.3	6920	0.0186	130	5540	0.0167	90	4150	0.0149	60	2770	0.0130	36
2.4	6630	0.0198	130	5310	0.0178	90	3980	0.0158	60	2650	0.0139	37
2.5	6370	0.0210	130	5100	0.0189	100	3820	0.0168	60	2550	0.0147	37
2.6	6120	0.0222	140	4900	0.0200	100	3670	0.0178	70	2450	0.0155	38
2.7	5900	0.0234	140	4720	0.0211	100	3540	0.0187	70	2360	0.0164	39
2.8	5690	0.0246	140	4550	0.0221	100	3410	0.0197	70	2270	0.0172	39
2.9	5490	0.0258	140	4390	0.0232	100	3290	0.0206	70	2200	0.0181	40
3.0	5310	0.0270	140	4250	0.0243	100	3180	0.0216	70	2120	0.0189	40

* if the machine tool or the equipment wouldn’ t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value

( Vf = n available x fn)

TYPHOON PU-HPU

TYPHOON SUH

TYPHOON ALH

TYPHOON HRC

TYPHOON SUH MINI

TYPHOON HL

C-SD-TA

LFTA

Material Group ISO 513

M1 M2 M3 M4 M5

SUTA

Ø RUN OUT < 0.02mm

Hardness / Rm < 750 N / mm ² 550-850 N / mm ² 650-950 N / mm ² 850-1200 N / mm ² Vc( m / min) 15-25 * 10-20 * 10-20 * 8-12 *

D( mm) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min)

1.0	6370	0.0041	26	4780	0.0034	16	4780	0.0028	14	3180	0.0024	8
1.1	5790	0.0045	26	4343	0.0038	17	4343	0.0032	14	2895	0.0027	8
1.2	5308	0.0050	26	3981	0.0042	17	3981	0.0035	14	2654	0.0030	8
1.3	4900	0.0054	26	3675	0.0046	17	3675	0.0038	14	2450	0.0032	8
1.4	4550	0.0059	27	3412	0.0050	17	3412	0.0041	14	2275	0.0035	8
1.5	4246	0.0068	29	3185	0.0057	18	3185	0.0047	15	2123	0.0041	9
1.6	3981	0.0077	30	2986	0.0065	19	2986	0.0054	16	1990	0.0046	9
1.7	3747	0.0086	32	2810	0.0073	20	2810	0.0060	17	1873	0.0051	10
1.8	3539	0.0095	33	2654	0.0080	21	2654	0.0066	18	1769	0.0057	10
1.9	3352	0.0104	35	2514	0.0088	22	2514	0.0072	18	1676	0.0062	10
2.0	3185	0.0113	36	2389	0.0096	23	2389	0.0079	19	1592	0.0068	11
2.1	3033	0.0122	37	2275	0.0103	23	2275	0.0085	19	1517	0.0073	11
2.2	2895	0.0131	38	2171	0.0111	24	2171	0.0091	20	1448	0.0078	11
2.3	2769	0.0140	39	2077	0.0119	25	2077	0.0098	20	1385	0.0084	12
2.4	2654	0.0149	39	1990	0.0126	25	1990	0.0104	21	1327	0.0089	12
2.5	2548	0.0158	40	1911	0.0134	26	1911	0.0110	21	1274	0.0095	12
2.6	2450	0.0167	41	1837	0.0142	26	1837	0.0117	21	1225	0.0100	12
2.7	2359	0.0176	41	1769	0.0149	26	1769	0.0123	22	1180	0.0105	12
2.8	2275	0.0185	42	1706	0.0157	27	1706	0.0129	22	1137	0.0111	13
2.9	2196	0.0194	42	1647	0.0164	27	1647	0.0135	22	1098	0.0116	13
3.0	2123	0.0203	43	1592	0.0172	27	1592	0.0142	23	1062	0.0122	13

* if the machine tool or the equipment wouldn’ t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value

( Vf = n available x fn)
