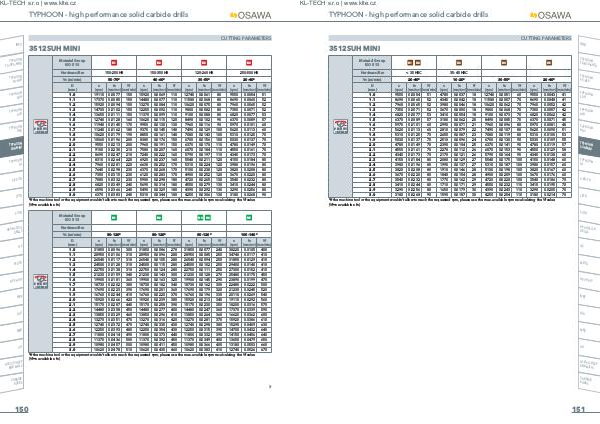

KL-TECH s.r.o | www.klte.cz TYPHOON - high performance solid carbide drills CUTTING PARAMETERS INFO 3512SUH MINI N TYPHOO HTA TA-HTA-4 N TYPHOO PU-HPU N TYPHOO SUH N TYPHOO ALH N TYPHOO HRC N TYPHOO I SUH MIN N TYPHOO HL C-SD-TA LFTA SUTA /CO HSS-HSS DRILLS G2 MDTA P HF VH/U MEF ALU MEX UH -HSSP HSS/CO LS END MIL CARBIDE BURRS 150 Material Group ISO 513 K1 K2 K3 K4 Hardness/Rm 150-250 HB 150-350 HB 120-260 HB 250-500 HB Vc (m/min) D (mm) 50-70* n (rpm) fn Vf (mm/rev) (mm/min) 40-60* n (rpm) fn Vf (mm/rev) (mm/min) 30-50* n (rpm) fn Vf (mm/rev) (mm/min) 20-40* n (rpm) fn Vf (mm/rev) (mm/min) 1.0 19110 0.0077 150 15920 0.0069 110 12740 0.0061 80 9550 0.0054 1.1 17370 0.0085 150 14480 0.0077 110 11580 0.0068 80 8690 0.0060 1.2 15920 0.0094 150 13270 0.0084 110 10620 0.0075 80 7960 0.0065 1.3 14700 0.0102 150 12250 0.0092 110 9800 0.0082 80 7350 0.0071 1.4 13650 0.0111 150 11370 0.0099 110 9100 0.0088 80 6820 0.0077 1.5 12740 0.0128 160 10620 0.0115 120 8490 0.0102 90 6370 0.0089 1.6 11940 0.0145 170 9950 0.0130 130 7960 0.0116 90 5970 0.0101 Ø RUN OUT 1.7 11240 0.0162 180 9370 0.0145 140 7490 0.0129 100 5620 0.0113 <0.02mm 1.8 10620 0.0179 190 8850 0.0161 140 7080 0.0143 100 5310 0.0125 1.9 10060 0.0196 200 8380 0.0176 150 6700 0.0156 100 5030 0.0137 2.0 9550 0.0213 200 7960 0.0191 150 6370 0.0170 110 4780 0.0149 2.1 9100 0.0230 210 7580 0.0207 160 6070 0.0184 110 4550 0.0161 2.2 8690 0.0247 210 7240 0.0222 160 5790 0.0197 110 4340 0.0173 2.3 8310 0.0264 220 6920 0.0237 160 5540 0.0211 120 4150 0.0184 2.4 7960 0.0281 220 6630 0.0252 170 5310 0.0224 120 3980 0.0196 2.5 7640 0.0298 230 6370 0.0268 170 5100 0.0238 120 3820 0.0208 2.6 7350 0.0315 230 6120 0.0283 170 4900 0.0252 120 3670 0.0220 2.7 7080 0.0332 230 5900 0.0298 180 4720 0.0265 130 3540 0.0232 2.8 6820 0.0349 240 5690 0.0314 180 4550 0.0279 130 3410 0.0244 2.9 6590 0.0366 240 5490 0.0329 180 4390 0.0292 130 3290 0.0256 3.0 6370 0.0383 240 5310 0.0344 180 4250 0.0306 130 3180 0.0268 *if the machine tool or the equipment wouldn’t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value (Vf=n available x fn) Material Group ISO 513 N1 N2 N3    N4 51 52 52 52 53 57 60 60 70 70 70 70 70 80 80 80 80 80 80 80 90 N5 Hardness/Rm 80-120* Vc (m/min) D (mm) n (rpm) fn Vf (mm/rev) (mm/min) 80-120* n (rpm) fn Vf (mm/rev) (mm/min) 80-120* n (rpm) fn Vf (mm/rev) (mm/min) 100-140* n (rpm) fn Vf (mm/rev) (mm/min) 1.0 31850 0.0096 300 31850 0.0086 270 31850 0.0077 240 38220 0.0105 1.1 28950 0.0106 310 28950 0.0096 280 28950 0.0085 250 34740 0.0117 1.2 26540 0.0117 310 26540 0.0105 280 26540 0.0094 250 31850 0.0129 1.3 24500 0.0128 310 24500 0.0115 280 24500 0.0102 250 29400 0.0140 1.4 22750 0.0138 310 22750 0.0124 280 22750 0.0111 250 27300 0.0152 1.5 21230 0.0159 340 21230 0.0143 300 21230 0.0128 270 25480 0.0175 1.6 19900 0.0181 360 19900 0.0163 320 19900 0.0145 290
