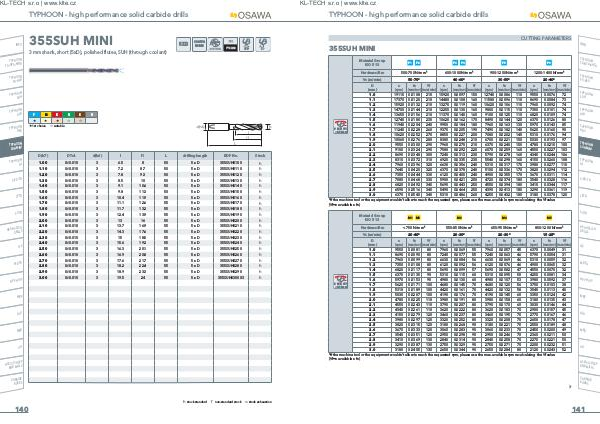

TYPHOON- high performance solid carbide drills

355SUH MINI

CUTTING PARAMETERS

INFO

Material Group ISO 513

P1 P2 P3 P4 P5 P6

TYPHOON

TA-HTA-4HTA

Ø RUN OUT < 0.02mm

Hardness / Rm 500-700 N / mm ² 600-1000 N / mm ² 900-1200 N / mm ² 1200-1400 N / mm ² Vc( m / min) 50-70 * 40-60 * 30-50 * 20-40 *

D( mm) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min)

1.0	19110	0.0108	210	15920	0.0097	150	12740	0.0086	110	9550	0.0076	72
1.1	17370	0.0120	210	14480	0.0108	160	11580	0.0096	110	8690	0.0084	73
1.2	15920	0.0132	210	13270	0.0119	160	10620	0.0106	110	7960	0.0092	74
1.3	14700	0.0144	210	12250	0.0130	160	9800	0.0115	110	7350	0.0101	74
1.4	13650	0.0156	210	11370	0.0140	160	9100	0.0125	110	6820	0.0109	74
1.5	12740	0.0180	230	10620	0.0162	170	8490	0.0144	120	6370	0.0126	80
1.6	11940	0.0204	240	9950	0.0184	180	7960	0.0163	130	5970	0.0143	85
1.7	11240	0.0228	260	9370	0.0205	190	7490	0.0182	140	5620	0.0160	90
1.8	10620	0.0252	270	8850	0.0227	200	7080	0.0202	140	5310	0.0176	94
1.9	10060	0.0276	280	8380	0.0248	210	6700	0.0221	150	5030	0.0193	97
2.0	9550	0.0300	290	7960	0.0270	210	6370	0.0240	150	4780	0.0210	100
2.1	9100	0.0324	290	7580	0.0292	220	6070	0.0259	160	4550	0.0227	103
2.2	8690	0.0348	300	7240	0.0313	230	5790	0.0278	160	4340	0.0244	106
2.3	8310	0.0372	310	6920	0.0335	230	5540	0.0298	160	4150	0.0260	108
2.4	7960	0.0396	320	6630	0.0356	240	5310	0.0317	170	3980	0.0277	110
2.5	7640	0.0420	320	6370	0.0378	240	5100	0.0336	170	3820	0.0294	112
2.6	7350	0.0444	330	6120	0.0400	240	4900	0.0355	170	3670	0.0311	114
2.7	7080	0.0468	330	5900	0.0421	250	4720	0.0374	180	3540	0.0328	116
2.8	6820	0.0492	340	5690	0.0443	250	4550	0.0394	180	3410	0.0344	117
2.9	6590	0.0516	340	5490	0.0464	250	4390	0.0413	180	3290	0.0361	119
3.0	6370	0.0540	340	5310	0.0486	260	4250	0.0432	180	3180	0.0378	120

* if the machine tool or the equipment wouldn’ t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value

( Vf = n available x fn)

TYPHOON PU-HPU

TYPHOON SUH

TYPHOON ALH

TYPHOON HRC

TYPHOON SUH MINI

TYPHOON HL

C-SD-TA

LFTA

Material Group ISO 513

M1 M2 M3 M4 M5

SUTA

Ø RUN OUT < 0.02mm

Hardness / Rm < 750 N / mm ² 550-850 N / mm ² 650-950 N / mm ² 850-1200 N / mm ² Vc( m / min) 20-40 * 20-30 * 20-30 * 15-25 *

D( mm) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min) n( rpm) fn Vf( mm / rev)( mm / min)

1.0	9550	0.0081	80	7960	0.0069	55	7960	0.0057	45	6370	0.0049	31
1.1	8690	0.0090	80	7240	0.0077	55	7240	0.0063	46	5790	0.0054	31
1.2	7960	0.0099	80	6630	0.0084	56	6630	0.0069	46	5310	0.0059	32
1.3	7350	0.0108	80	6120	0.0092	56	6120	0.0076	46	4900	0.0065	32
1.4	6820	0.0117	80	5690	0.0099	57	5690	0.0082	47	4550	0.0070	32
1.5	6370	0.0135	90	5310	0.0115	60	5310	0.0095	50	4250	0.0081	34
1.6	5970	0.0153	90	4980	0.0130	60	4980	0.0107	53	3980	0.0092	37
1.7	5620	0.0171	100	4680	0.0145	70	4680	0.0120	56	3750	0.0103	38
1.8	5310	0.0189	100	4420	0.0161	70	4420	0.0132	58	3540	0.0113	40
1.9	5030	0.0207	100	4190	0.0176	70	4190	0.0145	60	3350	0.0124	42
2.0	4780	0.0225	110	3980	0.0191	80	3980	0.0158	60	3180	0.0135	43
2.1	4550	0.0243	110	3790	0.0207	80	3790	0.0170	60	3030	0.0146	44
2.2	4340	0.0261	110	3620	0.0222	80	3620	0.0183	70	2900	0.0157	45
2.3	4150	0.0279	120	3460	0.0237	80	3460	0.0195	70	2770	0.0167	46
2.4	3980	0.0297	120	3320	0.0252	80	3320	0.0208	70	2650	0.0178	47
2.5	3820	0.0315	120	3180	0.0268	90	3180	0.0221	70	2550	0.0189	48
2.6	3670	0.0333	120	3060	0.0283	90	3060	0.0233	70	2450	0.0200	49
2.7	3540	0.0351	120	2950	0.0298	90	2950	0.0246	70	2360	0.0211	50
2.8	3410	0.0369	130	2840	0.0314	90	2840	0.0258	70	2270	0.0221	50
2.9	3290	0.0387	130	2750	0.0329	90	2750	0.0271	70	2200	0.0232	51
3.0	3180	0.0405	130	2650	0.0344	90	2650	0.0284	80	2120	0.0243	52

* if the machine tool or the equipment wouldn’ t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value

( Vf = n available x fn)
