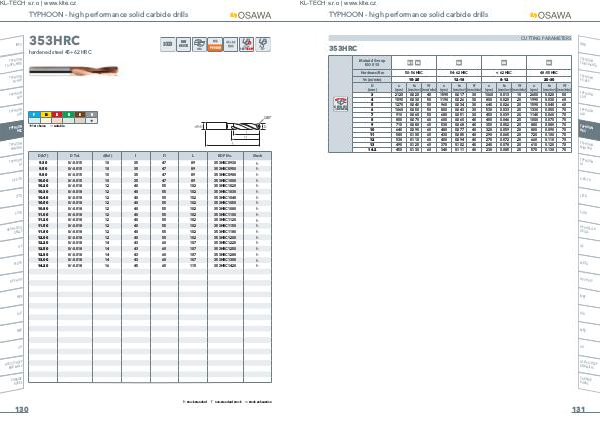

KL-TECH s.r.o | www.klte.cz TYPHOON - high performance solid carbide drills CUTTING PARAMETERS INFO 353HRC Material Group ISO 513 Ø RUN OUT <0.02mm H1 H4 H2 H3 H5 Hardness/Rm 50-56 HRC 54-62 HRC < 62 HRC 48-55 HRC Vc (m/min) 15-25 12-18 8-12 20-30 D (mm) n (rpm) 3 4 5 6 7 8 9 10 11 12 13 14.2 2120 1590 1270 1060 910 800 710 640 580 530 490 450 fn Vf (mm/rev) (mm/min) 0.020 0.030 0.040 0.050 0.060 0.070 0.080 0.090 0.100 0.110 0.120 0.130 40 50 50 50 50 60 60 60 60 60 60 60 n (rpm) 1590 1190 960 800 680 600 530 480 430 400 370 340 fn Vf (mm/rev) (mm/min) 0.017 0.026 0.034 0.043 0.051 0.060 0.068 0.077 0.085 0.094 0.102 0.111 30 30 30 30 30 40 40 40 40 40 40 40 n (rpm) 1060 800 640 530 450 400 350 320 290 270 240 230 fn Vf (mm/rev) (mm/min) 0.013 0.020 0.026 0.033 0.039 0.046 0.052 0.059 0.065 0.072 0.078 0.085 10 20 20 20 20 20 20 20 20 20 20 20 n (rpm) 2650 1990 1590 1330 1140 1000 880 800 720 660 610 570 TYPHOO N TA-HTA-4 HTA TYPHOO N PU-HPU fn Vf (mm/rev) (mm/min) 0.020 0.030 0.040 0.050 0.060 0.070 0.080 0.090 0.100 0.110 0.120 0.130 50 60 60 70 70 70 70 70 70 70 70 70 TYPHOO N SUH TYPHOO N ALH TYPHOO N HRC TYPHOO N MINI SUH TYPHOO N HL C-SD-TA LFTA SUTA HSS-HSS /CO DRILLS G2 MDTA HF VH/U P MEF ALU MEX UH HSS/CO -HSSP END MIL LS CARBIDE BURRS 131
