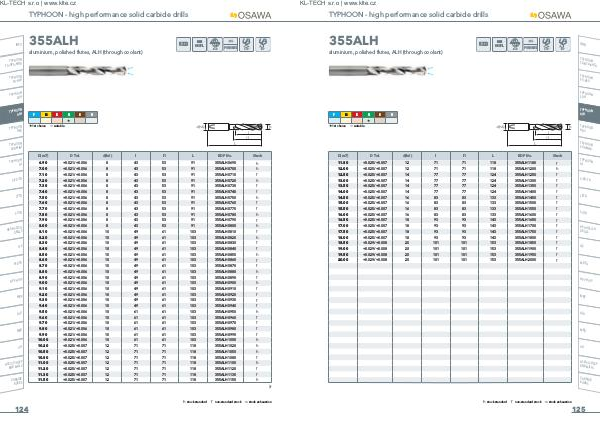

KL-TECH s.r.o | www.klte.cz TYPHOON - high performance solid carbide drills 355ALH DIN 6537L 5XD INFO POLISHED aluminium, polished flutes, ALH (through coolant) TYPHOO N TA-HTA-4 HTA TYPHOO N PU-HPU TYPHOO N SUH P M K N S TYPHOO N ALH H + + 1st choice , suitable TYPHOO N HRC TYPHOO N SUH MIN I D(m7) D Tol. d(h6) l l1 L EDP No. Stock 11.80 +0.025/+0.007 12 71 71 118 355ALH1180 f 12.00 +0.025/+0.007 12 71 71 118 355ALH1200 h 12.50 +0.025/+0.007 14 77 77 124 355ALH1250 f 13.00 +0.025/+0.007 14 77 77 124 355ALH1300 f 13.50 +0.025/+0.007 14 77 77 124 355ALH1350 f 14.00 +0.025/+0.007 14 77 77 124 355ALH1400 f 14.50 +0.025/+0.007 16 83 83 133 355ALH1450 f 15.00 +0.025/+0.007 16 83 83 133 355ALH1500 f 15.50 +0.025/+0.007 16 83 83 133 355ALH1550 f 16.00 +0.025/+0.007 16 83 83 133 355ALH1600 f 16.50 +0.025/+0.007 18 93 93 143 355ALH1650 f 17.00 +0.025/+0.007 18 93 93 143 355ALH1700 f 17.50 +0.025/+0.007 18 93 93 143 355ALH1750 f 18.00 +0.025/+0.007 18 93 93 143 355ALH1800 f 18.50 +0.029/+0.008 20 101 101 153 355ALH1850 f 19.00 +0.029/+0.008 20 101 101 153 355ALH1900 f 19.50 +0.029/+0.008 20 101 101 153 355ALH1950 f 20.00 +0.029/+0.008 20 101 101 153 355ALH2000 f TYPHOO N HL C-SD-TA LFTA SUTA HSS-HSS /CO DRILLS G2 MDTA HF VH/U P MEF ALU MEX UH HSS/CO -HSSP END MIL LS CARBIDE BURRS h stock standard f non-standard stock m stock exhaustion 125
