ANCHORING

ANCHORING

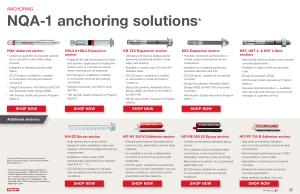

NQA-1 anchoring solutions *

HDA Undercut anchor
• Undercut segments incorporate carbide tips to perform a self-undercutting process.
• Designed to develop a ductile steel failure.
• ICC-ES report, suitable for cracked or uncracked concrete and seismic conditions.
• Design Documents: ACI-349 and ACI 318 and Allowable stress design( ASD).
• Hilti Nuclear Quality Assurance Program( NQA-1).
HSL3 & HSL4 Expansion anchor
• Designed for high performance in static and dynamic applications including the tension zone of concrete structures where cracking can be expected.
• ICC-ES report, suitable for cracked or uncracked concrete and seismic conditions.
• Design Documents: ACI 349-01 and ACI 318.
• Hilti Nuclear Quality Assurance Program( NQA-1).
KB-TZ2 Expansion anchor
• Ultimate performance wedge anchor delivering exceptional tension, shear, edge, and spacing.
• Available in carbon steel, 304 and 316 stainless steel.
• ICC-ES report, suitable for cracked or uncracked concrete and seismic conditions.
• Design Documents: Allowable Stress Design( ASD), ACI 349-01, ACI 349-13 and ACI 318.
• Hilti Nuclear Quality Assurance Program( NQA-1).
KB3 Expansion anchor
• Provides consistent performance in a wide range of mechanical anchor applications.
• Available in hot-dipped galvanized, stainless steel 304 and 316.
• ICC-ES report, suitable for uncracked concrete.
• Design Documents: Allowable Stress Design( ASD) and ACI 318( uncracked concrete).
• Hilti Nuclear Quality Assurance Program( NQA-1).
HST, HST 3, & HST 4 Stud anchors
• Specifically suited to seismic and cracked concrete applications.
• Available in carbon steel and stainless steel.
• Design Documents: ETAG.
• Hilti Nuclear Quality Assurance Program( NQA-1).
• European standard product— available upon special order through your account manager or customer service.
SHOP NOW SHOP NOW SHOP NOW SHOP NOW
Additional anchors:
For a list of Hilti anchors covered by our nuclear quality assurance program, refer to the SCM-3 NQA Manual Appendix 1.
* The Hilti Nuclear Quality Program is designed to meet the requirements of ASME NQA-1 2000 and 10CFR50 Appendix B and has been assessed to be in compliance with the requirements of ANSI N45.21971, ANSI N45.2-1977, ASME NQA-1-1994 and ASME NQA-1-2008 including 2011 addenda and ASME NQA-1-2014.
KH-EZ Screw anchor
• High-performance screw anchor design for quick installation, high load capacity, and minimal edge and spacing requirements.
• Available in carbon steel, CRC( mechanically galvanized) and stainless steel 316( ¼”- ½”).
• ICC-ES report, suitable for cracked and uncracked concrete and seismic conditions.
HIT-HY 200 V3 Adhesive anchor
• Ultimate-performance injectable hybrid mortar for dry, water-filled, and wet base materials.
• For installation of post-installed rebar connections and anchoring structural baseplates.
• ICC-ES report, suitable for cracked and uncracked concrete, lightweight concrete, seismic conditions, and anchoring into grout-filled concrete masonry.
HIT-RE 500 V3 Epoxy anchor
• Ultimate-performance injectable epoxy mortar.
• For installation of post-installed rebar connections, anchoring structural baseplates, and heavy-duty anchoring.
• Base material condition: dry, submerged, water-filled, wet.
• ICC-ES report, suitable for cracked or uncracked concrete and seismic conditions.
HIT-FP 700 R Adhesive anchor
• Injectable cementitious adhesive anchor for fire-resistant structural rebar connections.
• Bond strength performance up to 932 ° F, comparable to cast-in rebar.
• Application is cracked and uncracked concrete.
• Suitable for cracked and uncracked concrete applications.
• Base material condition: dry, wet.
SHOP NOW SHOP NOW SHOP NOW SHOP NOW
