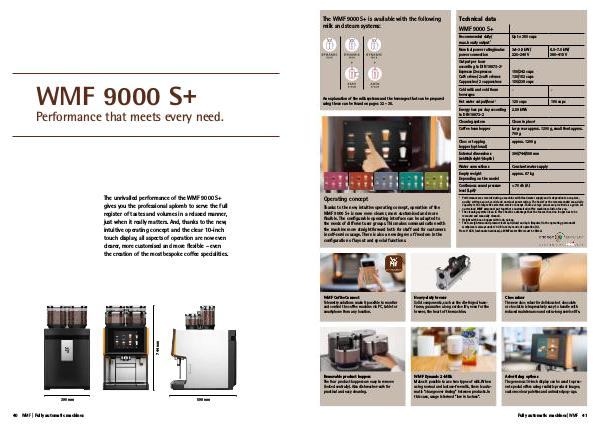

The WMF 9000 S+ is available with the following
milk and steam systems:
An explanation of the milk systems and the beverages that can be prepared
using these can be found on pages 32 – 35.
Operating concept
Technical data
WMF 9000 S+
Recommended daily/
max. hourly output 1 Up to 350 cups
Nominal power rating/mains
power connection 3.4–3.8 kW/
220–240 V
Output per hour
according to DIN 18873-2 2
Espresso /2 espressos
Café crème / 2 café crèmes
Cappuccino / 2 cappuccinos 150/242 cups
130/152 cups
150/238 cups
6.0–7.0 kW/
380–415 V
Cold milk and cold foam
beverages
Hot water output/hour 1 120 cups
Energy loss per day according
to DIN 18873-2 2.59 kWh
Cleaning system Clean in place 2
Coffee bean hopper Large rear approx. 1200 g, small front approx.
700 g
Choc or topping
hopper (optional) approx. 1200 g
External dimensions
(width/height 3 /depth) 390/744/598 mm
Water connections Constant water supply
Empty weight
Depending on the model approx. 67 kg
Continuous sound pressure
level (LpA) 4 < 70 db (A)
190 cups
Performance was recorded using a machine with fixed water supply and is dependent on cup size,
quality settings, spout, model and nominal power rating. The basis for the recommended max. daily
capacity is the respective selected service concept. These average values are provided as a guide. Let
our trained WMF personnel put together a customised coffee machine solution for you.
2
The cleaning system Clean in Place has the advantage that the foamer head no longer has to be
removed and manually cleaned.
3
Height with bean hopper with lock, no key.
4
The A-weighted sound pressure level LpA (slow) and LpA (impulse) in the operating personnel's
workplace is always under 70 dB in every mode of operation (A).
From 5° dKH (carbonate hardness), a WMF water filter must be fitted.
1
Thanks to the new, intuitive operating concept, operation of the
WMF 9000 S+ is now even clearer, more customised and more
flexible. The configurable operating interface can be adapted to
the needs of different user groups. This makes communication with
the machine more straightforward both for staff and for customers
in self-service usage. There is also a new degree of freedom in the
configuration of layout and special functions.
WMF CoffeeConnect
Telemetry solutions make it possible to monitor
and control the coffee machine via PC, tablet or
smartphone from any location. Heavy-duty brewer
Solid components, such as the die-forged base-
frame, guarantee a long service life, even for the
brewer, the heart of the machine. Choc mixer
The new choc mixer for delicious hot chocolate
or chociatto is impressively easy to handle with
reduced maintenance and extra-long service life.
Removable product hoppers
The four product hoppers are easy to remove
(locked centrally). Also dishwasher-safe for
practical and easy cleaning. WMF Dynamic 2-Milk
Makes it possible to use two types of milk. When
using normal and lactose-free milk, there is auto-
matic “changeover rinsing” between products. In
this case, usage is termed “low in lactose”. Advertising options
The generous 10-inch display can be used to pres-
ent special offers using realistic product images,
custom colour palettes and animated pop-ups.
Fully automatic machines| WMF 41
