Projeler/Projects: Ankara
pazarlama araçlarının biri de yeşil bina sertifikaları...
LEED Platinum sahibi bu projede ise mimarın
var olan teknolojilere ek olarak doğal malzeme,
kitle kompozisyonu ve iç mimari tasarımıyla
sürdürülebilirliği bütüncül bir anlayışla ele aldığı
görülüyor. Binadaki pasif iklimlendirme öğelerinin
geleneksel referanslarını Avcı şu sözlerle dile
getiriyor: “Osmanlı ve Bizans mimarisi, bize yakın
olan ve zaman zaman mimarimizde kullanmaya
çaba gösterdiğimiz evrensel kavramları gösterebilen
mimarilerden. Ankara’daki TMB binasında, hem
gölgeleme, hem de bir mahremiyet hissi yaratmada
kullanılan Osmanlı’nın ‘kafes’ine benzer gölgeleme
teknikleri kullanılıyor. İşin özeti, güneşin doğrudan
ışınlarını binanın yüzeyinden uzakta tutmak. Ayrıca,
isteyerek ve bilerek saklandığında hem serinliği, hem
de sıcaklığı koruyan kalın taş duvarlarla, kullanılan
kitle inşaat da bunun göstergesi. Binanın dış havayla
bağlantısı olmadığından, hep daha düşük bir
sıcaklıkta olan yer altı Bizans sarnıçları gibi görev
yapacak şekilde bir yer altı beton duvarlar labirenti
projelendirdik.”
Avcı, binadaki taş malzeme kullanım tercihlerini şu
sözlerle dile getiriyor: “Yapıda cephe ve iç mekanda
öne çıkan ahşap ve taş gibi doğal malzemeler, brüt
beton ile dengeli bir bütün oluşturuyor. Kullanılan
doğal malzemelerin yerel ve sürdürülebilir üretim
tekniklerine sahip tesislerden temin edilmesi ise
malzeme seçiminde en belirleyici etkenlerden biri
KÜTLESİNİN
YATAYDAKİ
BELİRGİN
HAREKETİYLE
DİKKAT ÇEKEN
TMB BİNASININ
DIŞ KABUĞU
KASTAMONU’DAN
GELEN ‘RUSTİK
YEŞİL’ MERMER
GİYDİRME CEPHE
İLE KAPLANMIŞ.
THE BUILDING
THAT HAS A
PROMINENT
HORIZONTAL
MOVEMENT,
IS CLAD WITH
‘RUSTIC GREEN’
MARBLE FROM
KASTAMONU.

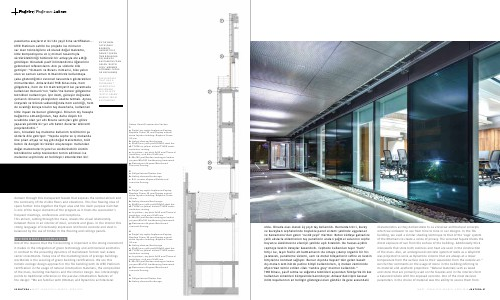

Sistem Kesiti/Constructive Section
1
a. Doğal taş cephe kaplaması Kaptaş:
Başdere Firuze 30 mm/Kaptaş natural
stone façade cladding: Başdere Firuze
30 mm
b. Ankraj elemanı/Anchorage
c. 50x50 mm çelik profil/50x50 steel bar
d. TYVEK su yalıtım örtüsü/TYVEK water
insulation coating
e. Isı yalıtımı, taş yünü 2x50 mm/Thermal
insulation, rock wool 2x50 mm
f. 80x100 profillerden anataşıyıcı karkas
çerçeve/80x100 loadbearing framework
g. Betonarme döşeme/Reinforced
concrete flooring
2
a. Gölge kutusu/Shutter box
b. Ankraj eleman/Anchorage
c. B.A. mantar döşeme/Reinforced
concrete flooring
domain through this transparent facade that exposes the central atrium and
the continuity of the visible floors and elevations. This free flowing idea of
space further links together the foyer area and the multi purpose hall that
is one of the major elements of the program as it hosts the association’s
frequent meetings, conferences and receptions.
This atrium, cutting through the mass, reveals the visual relationship
between floors in an interior of steel, concrete and glass. In the interior this
strong language of structurally expressive reinforced concrete and steel is
balanced by the use of timber in the flooring and ceilings panels.
Environmental construction
One of the reasons that the TCA building is important is the strong investment
it makes in the integration of green technology and architectural aesthetics
in contrast to the prevailing dynamics of mainstream Turkish real-estate
sector investments. Today one of the marketing tools of prestige buildings
worldwide is the securing of green building certifications. We see this
holistic ecologic design approach in the TCA building with its LEED Platinum
certification in the usage of natural construction materials, the composition
of the mass, building mechanics and the interior design. Avcı interestingly
points to traditional references in the passive climatization features of
the design: “We are familiar with Ottoman and Byzantine architectural
40 NATURA • MART - NİSAN 2014 / MARCH - APRIL 2014
3
a. Doğal taş cephe kaplaması Kaptaş:
Başdere Firuze 30 mm/Kaptaş natural
stone façade cladding: Başdere Firuze
30 mm
b. Ankraj elemanı/Anchorage
c. 50x50 mm çelik profil/50x50 steel bar
d. TYVEK su yalıtım örtüsü/TYVEK water
insulation coating
e. Isı yalıtımı, taş yünü 2x50 mm/Thermal
insulation, rock wool 2x50 mm
f. 80x100 profillerden anataşıyıcı karkas
çerçeve/80x100 loadbearing framework
g. Betonarme döşeme/Reinforced
concrete flooring
4
a. Doğal taş cephe kaplaması Kaptaş:
Başdere Firuze 30 mm/Kaptaş natural
stone façade cladding: Başdere Firuze
30 mm
b. Ankraj elemanı/Anchorage
c. 50x50 mm çelik profil/50x50 steel bar
d. TYVEK su yalıtım örtüsü/TYVEK water
insulation coating
e. Isı yalıtımı, taş yünü 2x50 mm/Thermal
insulation, rock wool 2x50 mm
f. 80x100 profillerden anataşıyıcı karkas
çerçeve/80x100 loadbearing framework
g. Betonarme döşeme/Reinforced
concrete flooring
5
a. Gölge kutusu/Shutter box
b. Ankraj eleman/Anchorage
