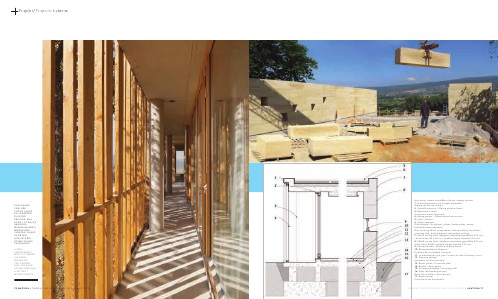

Ana konut, sistem kesiti/Main house, system section
1- Güneş korunumu için sürgülü parmaklık
Sliding rail for sun screen
2- Sürgülü pencere / Sliding window frame
3- Betonarme kolon
Concrete column (beyond)
4- Ahşap panjur / Slatted wood sun screen
5- Çakıl / Gravel
6- Çinko kaplama
(Çatı bileşimi: Su yalıtımı, yalıtım, beton plaka, ahşap
kontrplak tavan döşeme)
Zinc covering (Roof composition: Rain-proofing, insulation,
concrete slab, birch plywood suspended ceiling)
7- 50x30 cm taş blok, değişken uzunlukta (genellikle 210 cm)
/ Solid stone 50 x 30 cm, variable length (usually 210 cm)
8- 50x50 cm taş blok, değişken uzunlukta (genellikle 210 cm)
Solid stone 50x50 variable length (usually 210 cm)
9- Pencere kasası / Window in pine frame
10- Bitirmesiz beton döşeme
Finished floor polished concrete
11- Isı sirkülasyonu için çıta / Screen for floor heating circuit
12- Döşeme yalıtımı
Insulation for floor heating
13- Beton plaka / Concrete slab
14- Boşluk / Vent space
15- Su drenaj boşluğu / Draining infill
16- Akaç (bu kesite girmiyor)
Drain (not visible in this section)
17- Beton temel
Concrete mass foundation
