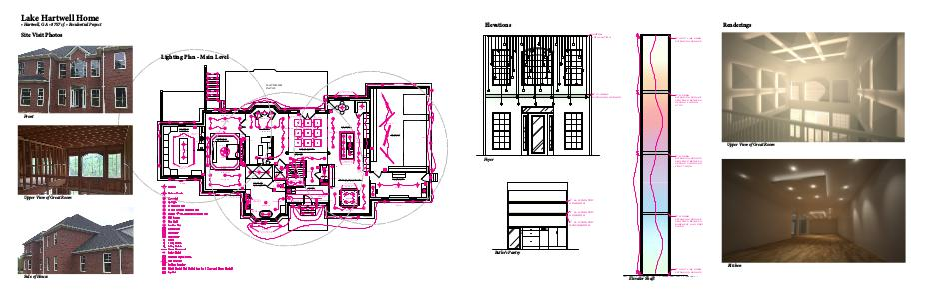

Lake Hartwell Home
• Hartwell, GA • 8757 sf. • Residential Project
Site Visit Photos
Lighting Plan - Main Level
outdoor
patio
70" H
28-1/2" A.F.F
70" H
28-1/2" A.F.F
existing recessed cans
on second level roof
ZONE 56
70" H
12" A.F.F
ZONE 55
pantry
6'-8" H
door
70" H
12" A.F.F
ZONE 17
ZONE 54
ZONE 18
ZONE 55
Front
9'-2" C.H
(2)lighting soffits
back lit with rgbw tape typical
ZONE 34
ZONE 6
tv room
master
closet
9'-1" C.H
ZONE 41
see
renderings
8'-0" H
opening
ZONE 35
ZONE 57
ZONE 33
9'-2" C.H
zone 32
9'-2" C.H
rgbw
tape light
under-cabinet
lighting
ZONE 37
master
bedroom
ZONE 43
kitchen
rgbw tape uplight
ZONE 16
ZONE
36
garage
ZONE 15
10'-0" C.H
lighting soffit
see
elevation
ZONE 2
ZONE 12
11'-11" C.H
great room
ZONE 42
19'-3" C.H
stairs
9'-2" C.H
ZONE 38
ZONE 29
ZONE 11
ZONE 14
tv
ZONE
39
8'-0"
opening
7" deep sofft
slope
7'-7" H
door
see elevation
elev.
9'-2" C.H
ZONE 44
ZONE 13
ZONE 30
up
rgbw tape uplight
lighting soffit
ZONE 31
ZONE 25
2" H rgbw
extrusion
p.r.
ZONE 27
ZONE 53
ZONE 40
8'-0" H
door
9'-1" C.H
Upper View of Great Room
9'-2" C.H
ZONE
51
6'-9" H
door
6'-9" H
door
mudroom
ZONE 10
breakfast/dining
round
foyer
ZONE
45
lighting soffit
rgbw tape uplight
ZONE 26
rgbw
8'-0"
opening
19'-3" C.H
dn
ZONE 1
9'-2" C.H
9'-2" C.H
ZONE
52
8'-0"
opening
undercabinet
lighting
see
elevation
ZONE 122
master
bathroom
ZONE 1
ZONE 28
tape
ZONE 9
ZONE 4
ZONE 3
see elevation
8 additional
cans to be placed
ZONE 24
ZONE 50
ZONE 48
led
mirrors
ZONE extrusion sconce
22 ZONE 23
ZONE 19
ZONE 20
ZONE 47
ZONE 49
existing recessed cans
on second level roof
ZONE 21
ZONE 5
ZONE 8
2" H rgbw
led under
vanity light
ZONE 46
70" H
11" A.F.F
36" X80' W/ 1' GLASS ON TOP &
GLASS ON BOTH SIDES
52" AT WINDOW ABOVE
WINDOW
leave romex
without j-box
hardwire
70" H
11" A.F.F
ZONE 1
ZONE 7
70" H
12" A.F.F
70" H
12" A.F.F
existing recessed cans
on second level roof
ZONE 1
ZONE 21
existing recessed cans
on second level roof
Side of House
L
